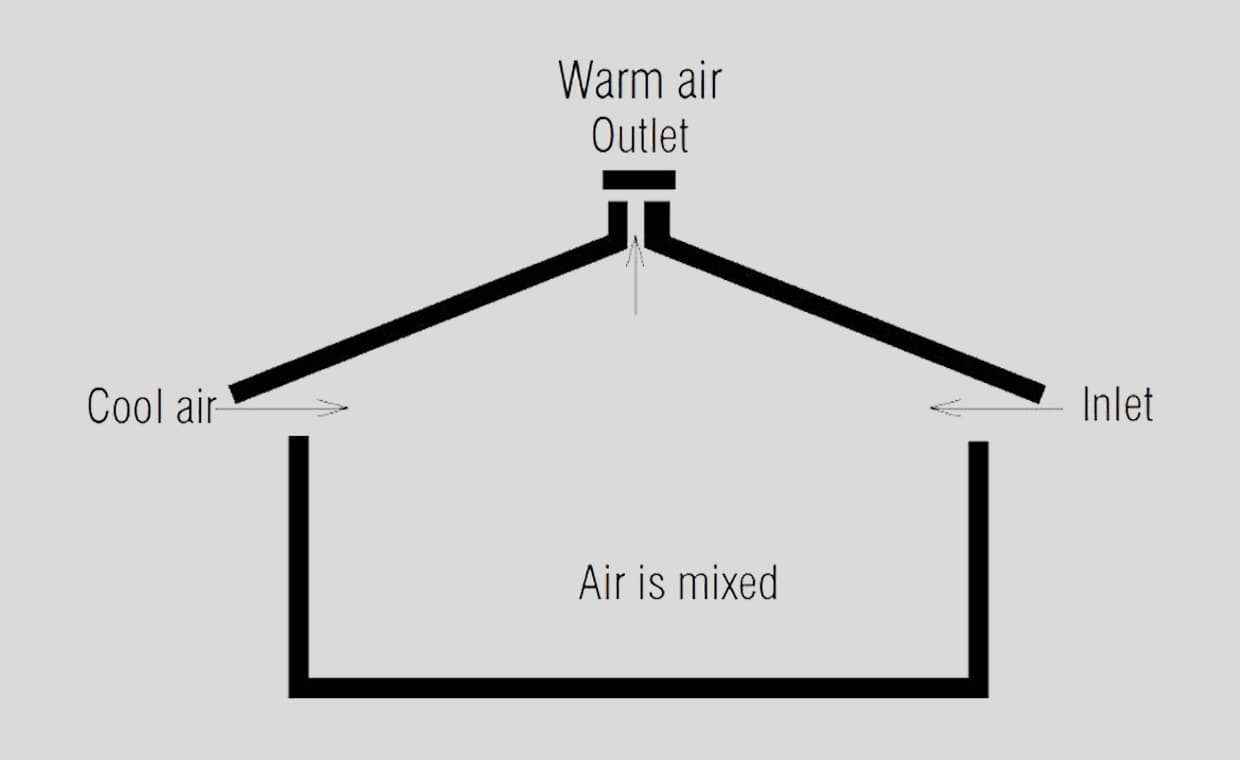

The stack effect occurs when warm air rises within a building. In summer, warm air rises because it is lighter than cold air. As it moves upward, it escapes through upper-level ventilation openings, windows or leaks. The rising warm air reduces the pressure at the base of the building, forcing cold air to infiltrate through either open doors, windows, or other openings and leakage in lower levels of the building. This process is a key principle behind passive stack ventilation, which utilises natural airflow instead of mechanical systems to ventilate spaces.
Also, explore Types of Ventilation for Your House to understand where stack ventilation fits among other methods.
The stack effect in buildings generally causes air infiltration.
OR
In other words, it is a convection effect arising from temperature or vapour pressure difference (or both) between outside and inside of the room and the difference in height between the outlet and inlet openings. This phenomenon is also commonly referred to as the chimney effect ventilation, mimicking the way smoke exits a chimney due to the upward movement of warm air.
If you are curious how the stack effect works in practice? Click here to watch this explainer video on YouTube
How Well Does Stack Ventilation Work?

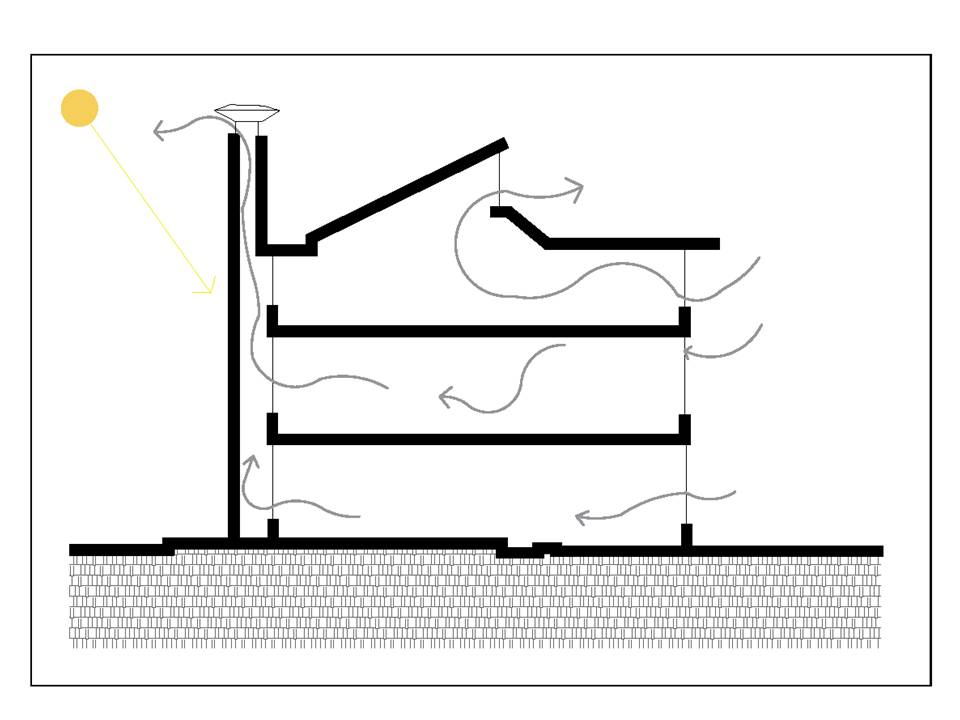

For effective passive stack ventilation, a high ceiling is required. The effectiveness of this type of natural ventilation depends on the size of the building. If the ceiling is too low, warm air may not rise sufficiently and will remain within the occupied zone. According to Elmualim (2006), design factors such as ceiling height, temperature gradients, and building orientation play a critical role in the success of passive stack ventilation.
Also read: Ways to improve home ventilation
Other influencing factors include the amount of internal heat, the shape of the building, and its orientation, whether or not it faces the windward side, for example. Learn how architectural design influences airflow in Air Change in A Room: The What, Why and How Answered.
In short, stack effect ventilation can make a huge difference in the facility’s indoor environment. By directing warm air away from occupants and enabling it to escape through the roof, we create a noticeable impact on interior conditions.

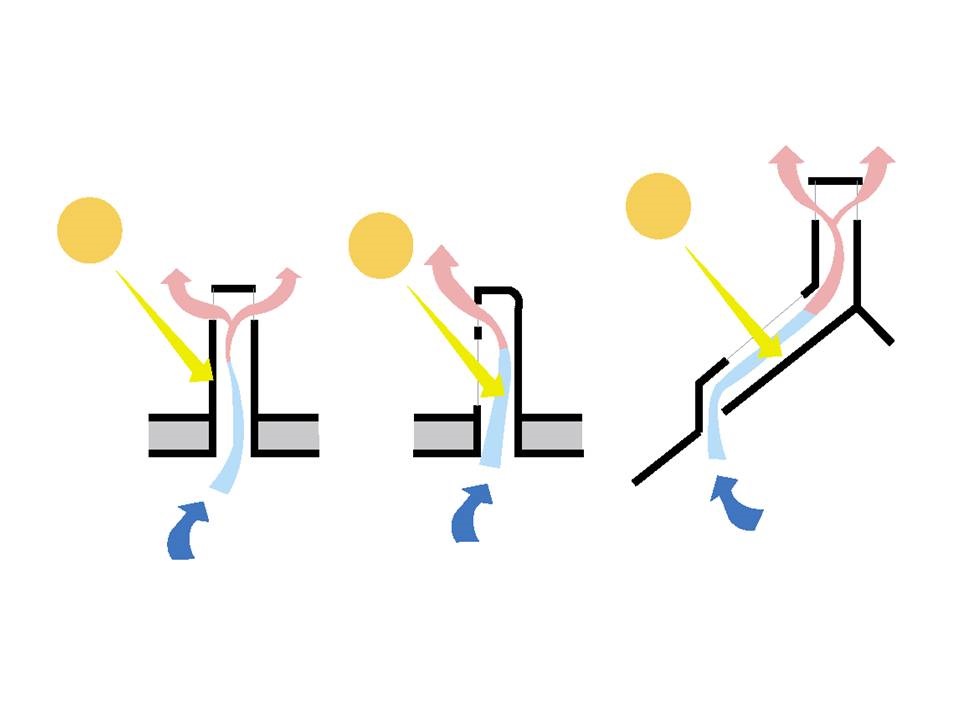

Incorporating elements like solar chimneys can also boost natural ventilation. Read Solar Chimney as a Sustainable Solution for Homes for more insights.

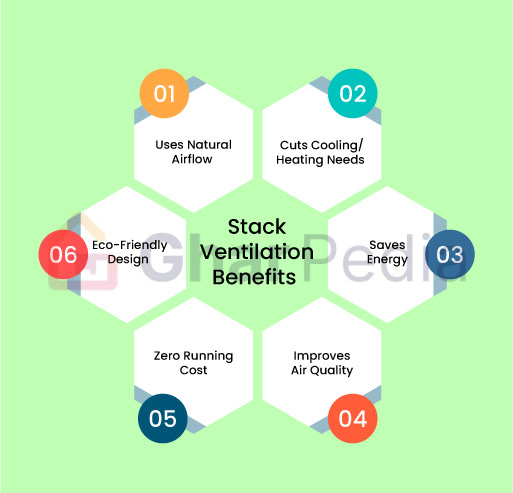

Benefits of Stack Ventilation
Stack ventilation offers several advantages, particularly in energy efficiency. By utilising natural temperature gradients, it minimises the need for mechanical air conditioning or heating systems, which reduces overall energy consumption. It also promotes better air circulation, helping maintain indoor air quality by facilitating the escape of pollutants and stale air. The absence of operating costs for air movement systems makes passive stack ventilation an economically viable option for many buildings. This natural method aligns with sustainable design practices, making it a favourite in eco-conscious architecture. For tips on reducing energy usage with passive methods, read 5 Smart Ways to Reduce Energy Consumption at Home.
Also Read: Green Buildings: Sustainable & Eco-Friendly Architecture
Challenges and Limitations of Stack Effect
While stack ventilation can be an effective solution for maintaining airflow, it does have some limitations. In tall buildings, the stack effect in buildings may lead to inefficient energy use, as warm air escapes from upper floors, necessitating increased heating on lower floors during winter or cooling on upper floors during the summer. Additionally, chimney effect ventilation may not provide consistent or predictable results, as it relies heavily on external conditions like outdoor temperature and wind direction. Without careful design, it could also lead to the infiltration of polluted air or excess humidity, potentially creating indoor air quality issues. To avoid design pitfalls and poor airflow, review Functional Requirements of a Ventilation System in House.
Enhancements for Optimal Performance

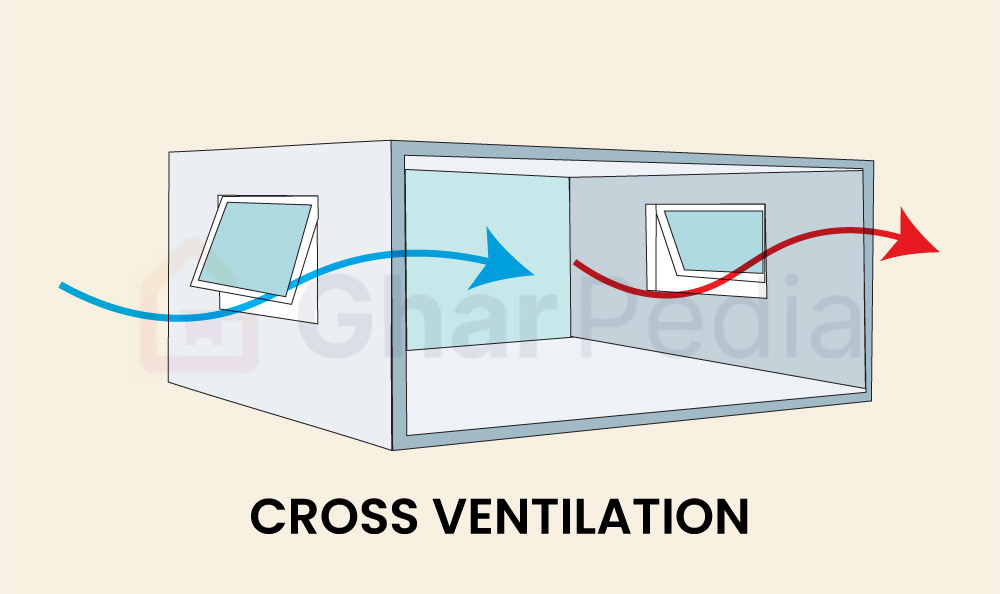

To maximise the effectiveness of passive stack ventilation, it is important to combine it with other natural ventilation strategies, such as cross-ventilation. This involves placing windows or vents on opposite sides of a building to allow air to flow horizontally in addition to the vertical flow created by the stack effect. Proper insulation and sealing of openings can help prevent unwanted airflow, reducing energy loss. In some cases, automated systems that regulate the size of openings based on temperature or time of day can also be used to optimise airflow and reduce temperature fluctuations, making stack ventilation more reliable and efficient. Roof vents also play a critical role in enhancing the stack effect—explore Roof Vents Guide to understand their function.
Also Read: Complete Guide to Home Insulation
FAQs Related to Stack Effect
1. How Does the Stack Effect Affect Indoor Temperatures?
The stack effect can cause indoor temperatures to fluctuate based on outdoor conditions. In winter, warm air rises and escapes from the upper floors, causing cold air to infiltrate from the lower levels. In hot weather, the reverse can occur, where cooler air escapes from lower floors and hot air infiltrates from higher floors, increasing the need for cooling.
2. Can Stack Ventilation Be Used in All Buildings?
Stack ventilation works best in taller buildings or those with high ceilings, where the pressure difference between the top and bottom levels is significant. However, it may not be as effective in low-rise buildings or those with poor design or insulation.
3. What Are the Environmental Benefits of Stack Ventilation?
Stack ventilation is a sustainable, energy-efficient solution because it reduces the need for mechanical cooling and heating systems, which lowers energy consumption. It also relies on natural elements like gravity and temperature differences, making it an eco-friendly alternative to traditional ventilation methods.
4. How Can Stack Ventilation Be Enhanced for Better Performance?
Stack ventilation can be enhanced by combining it with cross-ventilation, ensuring windows or vents on opposite sides of the building are open to facilitate horizontal airflow. Additionally, using automated systems to adjust ventilation based on temperature changes and sealing air leaks can help optimise its effectiveness.
5. What Are the Limitations of Relying Solely on Stack Ventilation?
One of the main limitations of stack ventilation is its reliance on external weather conditions, which can make it less predictable and harder to control. It may also bring in polluted air from outside, and in very tall buildings, it can lead to energy inefficiency.
