Concrete grinders use horizontally revolving discs to perform various activities, including light texturing to open the surface’s pores and paint and thin coating removal. The grinding attachments, which come in various sorts and grits to suit different applications, are the key to their adaptability. Cleaning concrete floors, removing concrete coatings, and polishing concrete floors are just some of the applications for a concrete floor grinder. It’s used as a concrete polishing tool, a surface preparation tool, and an aggressive coating removal tool.
The concrete grinder is suitable for dull surfaces that have accumulated a layer of aggressive coating, or for removing a layer of debris and sludge from the surface. The grinder polishes concrete surfaces, resulting in a gleaming finish. As the grinding operation is carried out, the new diamond is exposed to the surface. The diamond particles do not come into contact with each other right away. The coarser grit transitions to finer grits as the process progresses.
Types of Concrete Grinder

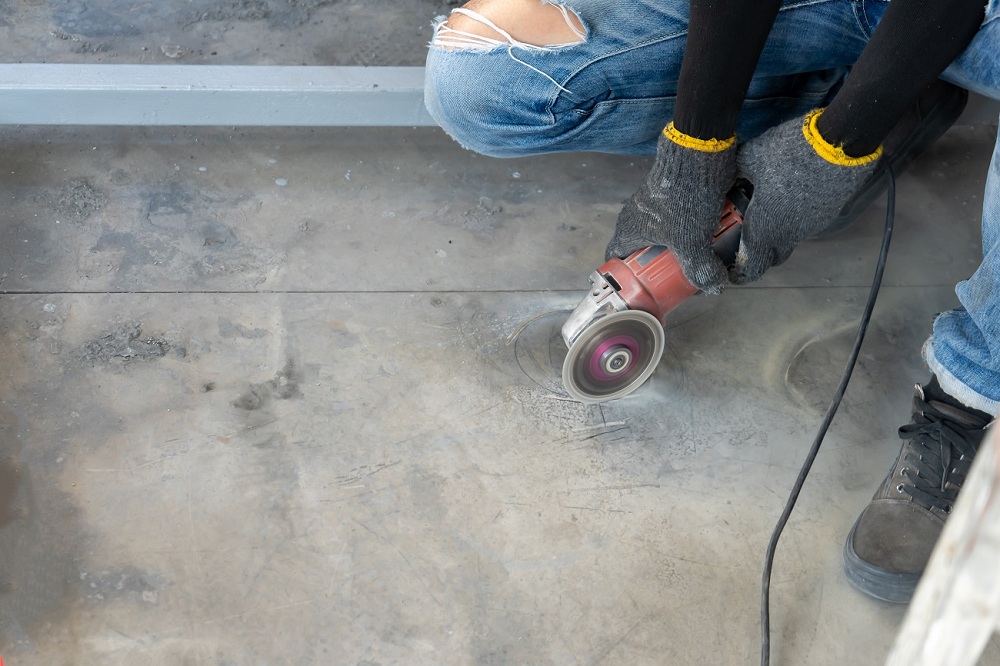

01. Handheld Concrete Grinder
One of the most useful tools you might have is a handheld grinder. It is a quick way to eliminate bumps and other imperfections in horizontal and vertical planes. You can also use it to remove graffiti, old paint, coatings, and roughen floors so that coatings will stick better. The handheld grinder is compact and easy to handle.
This grinder grinds the corners of concrete surfaces or hard-to-reach regions where walk-behind concrete grinders can’t reach. Compared to walk-behind concrete grinders, this grinder has a smaller grinding area. An extraction hose attached to a tool or a shroud removes the dust produced during the grinding process.

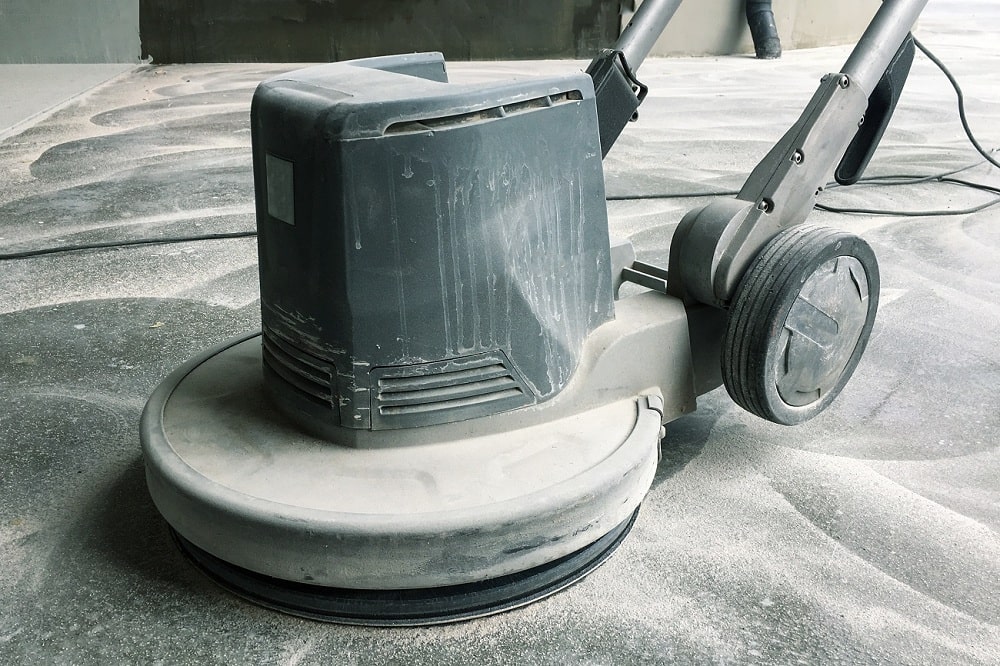

02. Walk-Behind Concrete Grinder
A walk-behind concrete grinder is a large concrete grinder that grinds the concrete across the floor’s entire body. These devices are capable of grinding larger sections of concrete. These are available in various sizes, ranging from small to very large. Grinder gangs can be used to cover larger areas of the floor with walk-behind floor grinders. Epoxy, paint, tile glue, mastic, and thin-set are removed quickly with this floor grinding equipment.
A walk-behind concrete grinder is equipped with one or two diamond-impregnated drums. The top edge of the drum spins and presses against the concrete surface to be polished as the machine gently travels. The grinding operation clears any concrete floor by removing mill scale, filth, rust stains, and other flaws.
The machine makes its way across the floor, smoothing out any rough spots and preparing the surface for a final coat of fresh concrete to be applied over the top. However, a walk-behind concrete grinder is smaller than the enormous rotary floor equipment. The smaller machine’s two wheels make it easier to manoeuvre around obstacles and less likely to trip pedestrians than the larger one’s four wheels.
Components of Concrete Grinder
The following are the primary components of a concrete grinder:
Usually, a concrete grinder contains a rotating head that levels and smooths the surface. The use of such tools is increasing; diamonds do most of the concrete grinding. Since the abrasive disc that grinds the surface contains diamond particles, this process is known as diamond grinding.

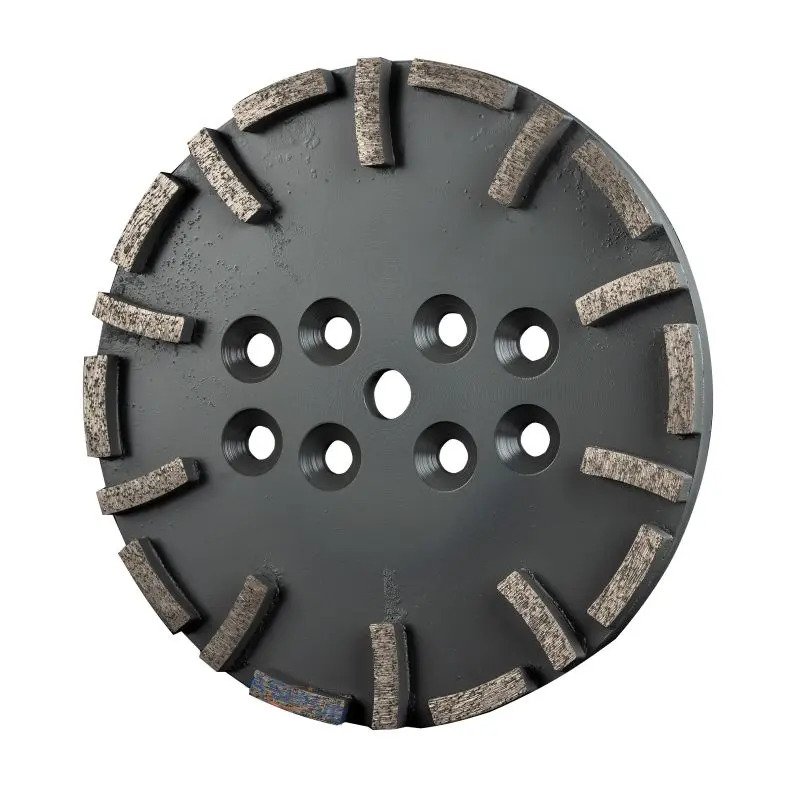

i. Bonds
Bonds are an essential part of a concrete grinder. If the bond used is not identical to the material used for grinding, the concrete grinding tool works quickly. The bond’s main objective is to completely support the diamond used for grinding.
During the grinding process, the bond wears in an organized manner so that the new diamond is vulnerable to grinding without the diamond breaking suddenly. The diamond grit and bonding options vary depending on the application.

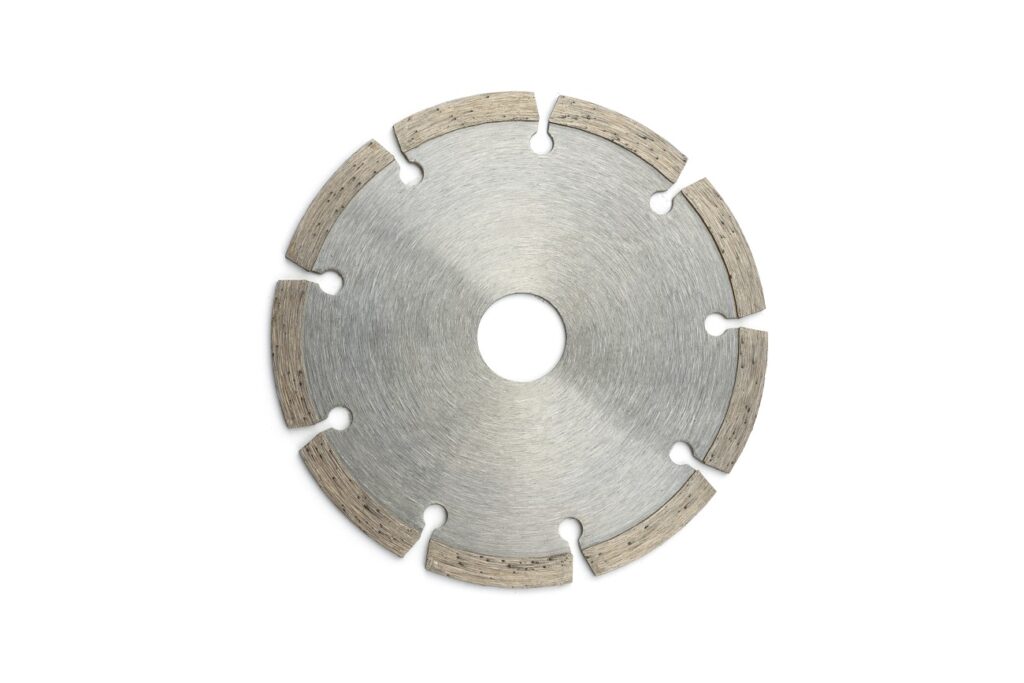

ii. Diamond
Diamond shapes are available as grits in different sizes and numbers which aid in work optimization. The size of a diamond and its grit number is inversely proportional, which means that a larger diamond is smaller in size and vice versa.
Uses of Concrete Grinder
- A concrete grinder can easily remove stubborn tile glues from the surface.
- A concrete grinder makes the surface finish better than other stone floor surfaces.
- It can be used to make rough concrete smooth and shiny.
- It’s cheaper than other membrane-removal methods.
- The concrete surface allows grinding down more to show the aggregates and then polished to look nice. An old, worn-down concrete surface can look as good as new after the grinding process. The concrete grinding removes all the flaws and bumps in the concrete, making it look smooth and ready to use again.
- Dirt and other things that build up on the surface are hard to remove. But it’s easy to get them all off with a concrete grinder.
- It is easier to install flooring after the concrete griding process than before.
- This method of grinding is strong and will last a long time. The concrete grinding process has been effective even in bad environments.
Advantages of Concrete Grinding
- A worn-out concrete surface can be brought back to life with the help of a concrete grinding process. The grinding process removes any faults and lumps from the concrete, making it smooth and usable.
- Using a concrete grinder to polish the surfaces gives a good shine to the floor. It is easier to lay flooring after the concrete has been ground down.
- This grinding procedure is durable and long-lasting. This procedure has proven to work well, even on difficult surfaces.
- Dirt and other build-ups on the surface are difficult to remove. However, a concrete grinder may easily remove them all.
Disadvantages of Concrete Grinding
- If you choose the wrong diamond, you might grind the floor wrongly or too much, which can cause several problems.
- Always give yourself enough time to grind the floor. If you do it quickly, the floor will look uneven.
- A skilled person is required to complete the concrete grinding process.
Conclusion
Concrete grinders are frequently used to level a slab, remove paint, epoxies, stains, and other coatings from concrete, and polish concrete surfaces to perfection. When using a concrete grinder, people frequently make mistakes. Selecting the wrong diamond can result in improper and excessive grinding of the floor, which can cause various issues. Always take your time grinding the floor; doing it in a hurry can result in unevenness, which looks bad. Because the large machines are heavy to operate, make sure you have enough power because you will quickly become exhausted.
