Mapping the Unseen: Innovations in Underground Utility Detection

Are you tired of costly and time-consuming utility disruptions due to unidentified underground infrastructure? Imagine a world where you can effortlessly detect and map hidden utilities, saving time, money, and headaches. In “Mapping the Unseen: Innovations in Underground Utility Detection,” we explore cutting-edge technologies that revolutionize the way we detect and locate underground utilities. From Ground Penetrating Radar (GPR) and Electromagnetic Induction (EMI) to Acoustic Leak Detection and Advanced GIS Mapping Technology, these innovations have the potential to transform the utility industry. With 3D imaging, visualization, and even augmented reality, you can now accurately navigate and avoid buried utilities, reducing risks and improving efficiency. Join us as we delve into these breakthroughs and discover a new era of underground utility detection.

Innovations in Underground Utility Detection

01. Ground Penetrating Radar (GPR)

Using ground penetrating radar (GPR), you can accurately locate underground utilities and infrastructure with the help of utility coordination best practices. This underground services locator is a non-destructive geophysical method that uses electromagnetic waves to create images of subsurface objects. It works by emitting high-frequency radio waves into the ground, which then bounce back when they encounter different materials or objects. By analyzing the time it takes for the waves to return and their strength, GPR utility locating can provide valuable information about what lies beneath the surface.

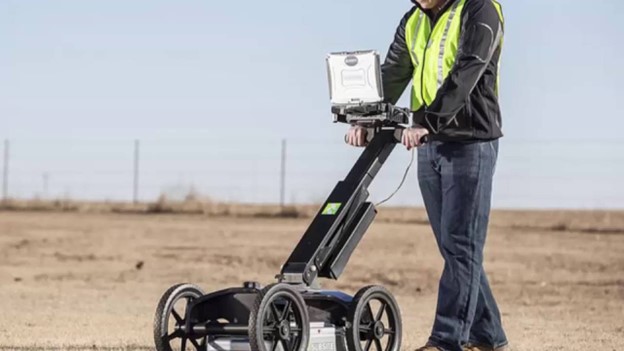

Ground Penetrating Radar for underground utility detection

02. Electromagnetic Induction (EMI)

To accurately detect pipes underground and infrastructure, another effective method is electromagnetic induction (EMI). With EMI, you can detect and map out the presence of metallic objects or structures beneath the ground’s surface. This technique relies on the principle that when an alternating current is passed through a conductor, it creates a magnetic field around it. The presence of underground utilities disrupts this magnetic field, allowing EMI equipment to detect and locate them.

EMI technology works by using a transmitter to generate an electromagnetic field, which induces currents in any nearby conductive objects. These induced currents generate their own magnetic fields, which can be detected by a receiver. By analyzing the strength and characteristics of the detected signals, you can determine the location, depth, and orientation of underground utilities. To help you better understand the capabilities and limitations of EMI utility detector technology,

here is a comparison table showcasing its features:

Depth RangeShallow to deepLimited in very deep areas
Utility TypesCan detect metallic and non-metallic utilitiesLimited to conductive objects
SpeedRapid data collectionRequires skilled operators
Site ConditionsWorks in various soil and weather conditionsInterference from nearby structures

03. Acoustic Leak Detection

With acoustic leak detection, you can pinpoint the location of underground leaks by listening for sound vibrations caused by escaping fluids. This technology has revolutionized the way leaks are detected and repaired, offering several benefits that make it an invaluable tool in utility detection:

  • Accuracy: (bold) Acoustic leak detection provides precise location information, allowing you to quickly identify the exact point of a leak. This accuracy reduces unnecessary digging and minimizes disruption to the surrounding area.
  • Efficiency: (bold) By swiftly identifying the location of leaks, acoustic detection saves time and resources. It enables prompt repairs, preventing further damage and reducing water loss. This efficiency helps utilities meet sustainability goals and save costs in the long run.
  • Safety:(bold) Acoustic leak detection eliminates the need for invasive excavation, reducing the risk of accidents and injuries. It provides a non-destructive method of identifying leaks, ensuring the safety of both workers and the public.

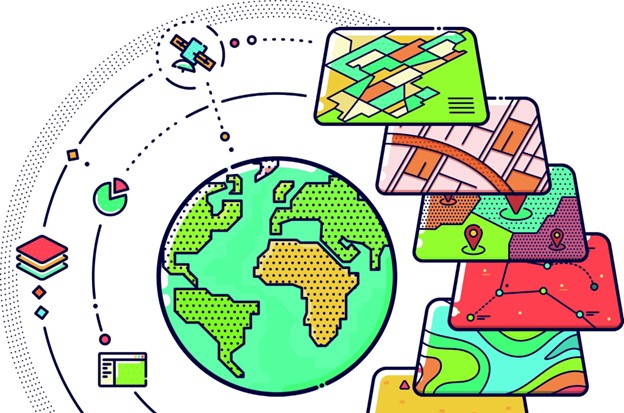

04. Advanced GIS Mapping Technology

You can further enhance the accuracy and efficiency of underground utility detection by leveraging advanced GIS mapping technology. Geographic Information System (GIS) technology allows you to create detailed maps and databases that can be used to visualize and analyze underground utility networks. By incorporating data from various sources, such as surveying equipment, ground-penetrating radar, and utility records, GIS mapping technology enables you to accurately locate and identify underground utilities.

One of the key benefits of advanced GIS mapping technology is its ability to provide real-time updates and integration with other systems. This means that you can easily access and update utility data on the go, improving workflow and reducing the likelihood of errors. Additionally, GIS mapping technology allows you to overlay different layers of information, such as utility lines, land topography, and infrastructure, providing a comprehensive view of the underground environment.

Furthermore, advanced GIS mapping technology offers advanced analytics capabilities. By analyzing data collected from various sources, you can identify patterns, trends, and potential risks associated with underground utility networks. This helps in making informed decisions regarding maintenance, repairs, and future infrastructure planning.

05. 3D Imaging and Visualization

Enhance your underground utility detection with cutting-edge 3D imaging and visualization technology. By utilizing this advanced technology, you can gain a clearer understanding of the underground infrastructure, leading to more accurate and efficient detection of utilities. Here are three reasons why you should consider incorporating 3D imaging and visualization into your underground utility detection process:

  • Improved Accuracy: (bold) With 3D imaging and visualization, you can visualize the exact location and depth of underground utilities. This allows you to accurately map the underground infrastructure and avoid potential conflicts or damages during construction or excavation projects.
  • Enhanced Efficiency: (bold) By using 3D imaging and visualization, you can quickly identify the location and type of underground utilities, reducing the time and effort required for manual inspection and surveying. This helps streamline your workflow and increases overall project efficiency.
  • Enhanced Safety: (bold) Detecting underground utilities accurately is crucial for maintaining safety on construction sites. 3D imaging and visualization technology can help identify potential hazards, such as gas or water pipes, ensuring that adequate precautions are taken to prevent accidents or disruptions.

06. Augmented Reality (AR) for Underground Utility Detection

To enhance your underground cable locators, consider incorporating augmented reality (AR) technology, which allows for real-time visualization and interaction with underground infrastructure. AR for utility detection involves overlaying digital information onto the real world, providing users with a comprehensive understanding of the underground utility network.

With AR, you can use your smartphone or tablet to scan the area and instantly see the location of utility lines, pipes, and cables displayed in real-time on your device’s screen. This technology can help you avoid accidental damage to underground infrastructure during construction or excavation projects.

AR for underground utility detection also offers the ability to view different layers of information, such as the depth, type, and condition of utility lines. By simply pointing your device towards the ground, you can access detailed information about the utilities beneath you, helping you make informed decisions and plan your work more efficiently.

Additionally, AR can provide step-by-step instructions, guiding you through the process of locating and marking underground utilities accurately. This can save you time and reduce the risk of errors, ensuring that you comply with safety regulations and avoid costly mistakes.

Endnote, innovations in underground utility detection rescue us from the huge loss of time and resources invested in surveying and selecting site for construction project. Furthermore, some of these technologies are non-invasive and accurate.
