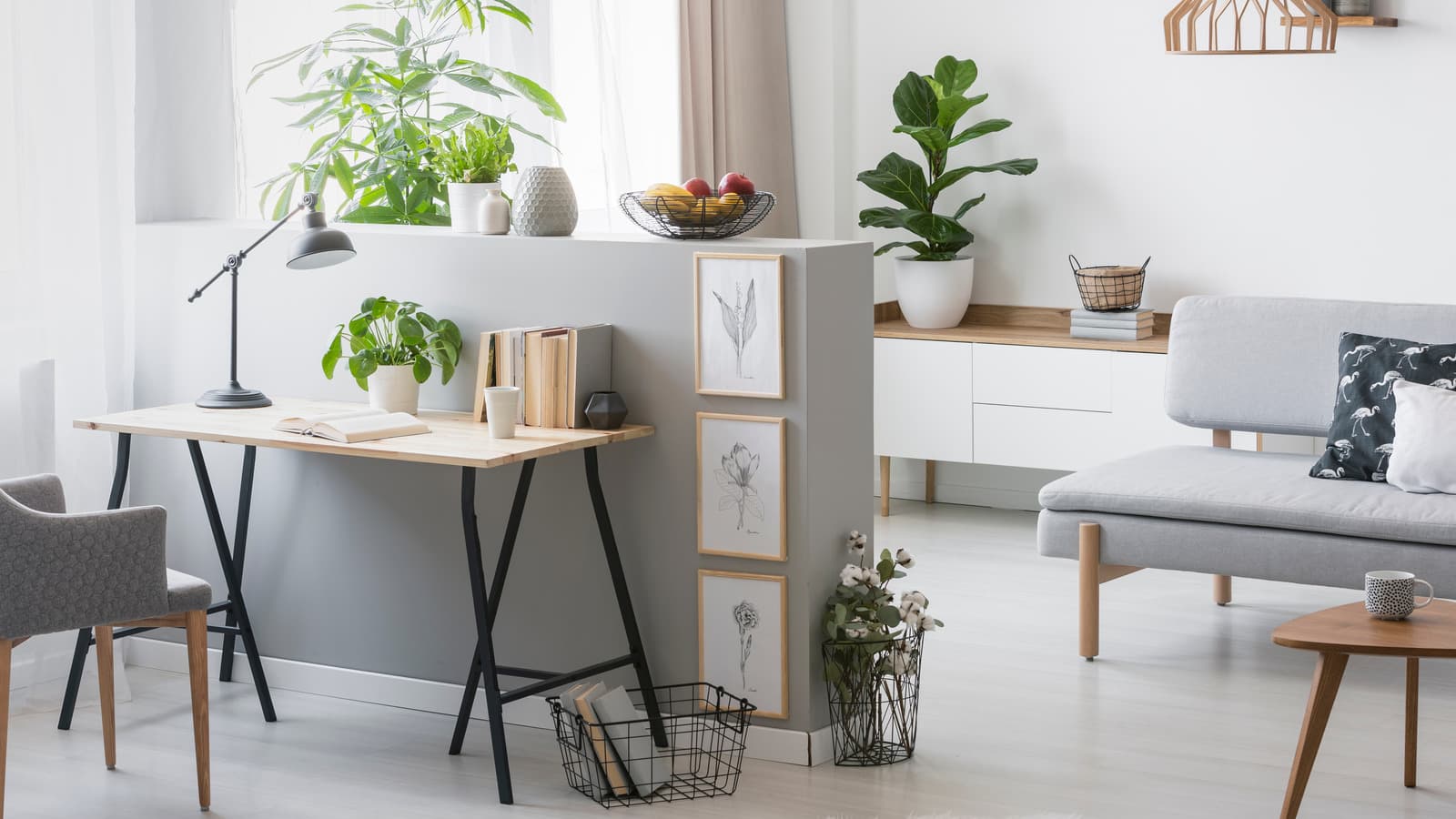

Pony walls are short walls that are usually less than the height of a full-sized wall. They are commonly used in building construction to create a visual barrier or support a countertop, half-wall, or other structure. These are best when constructed between 18 and 24 inches high, with the lowest level at 12 inches. It is also referred to as a short wall. In contrast, the words “knee wall” and “cripple wall’ are used interchangeably. In traditional Japanese architecture, low walls known as “shoji” are built to divide spaces and provide privacy without completely closing the rooms. These walls were made of paper or thin wooden frames, allowing light to pass through and creating a sense of openness and harmony with nature.

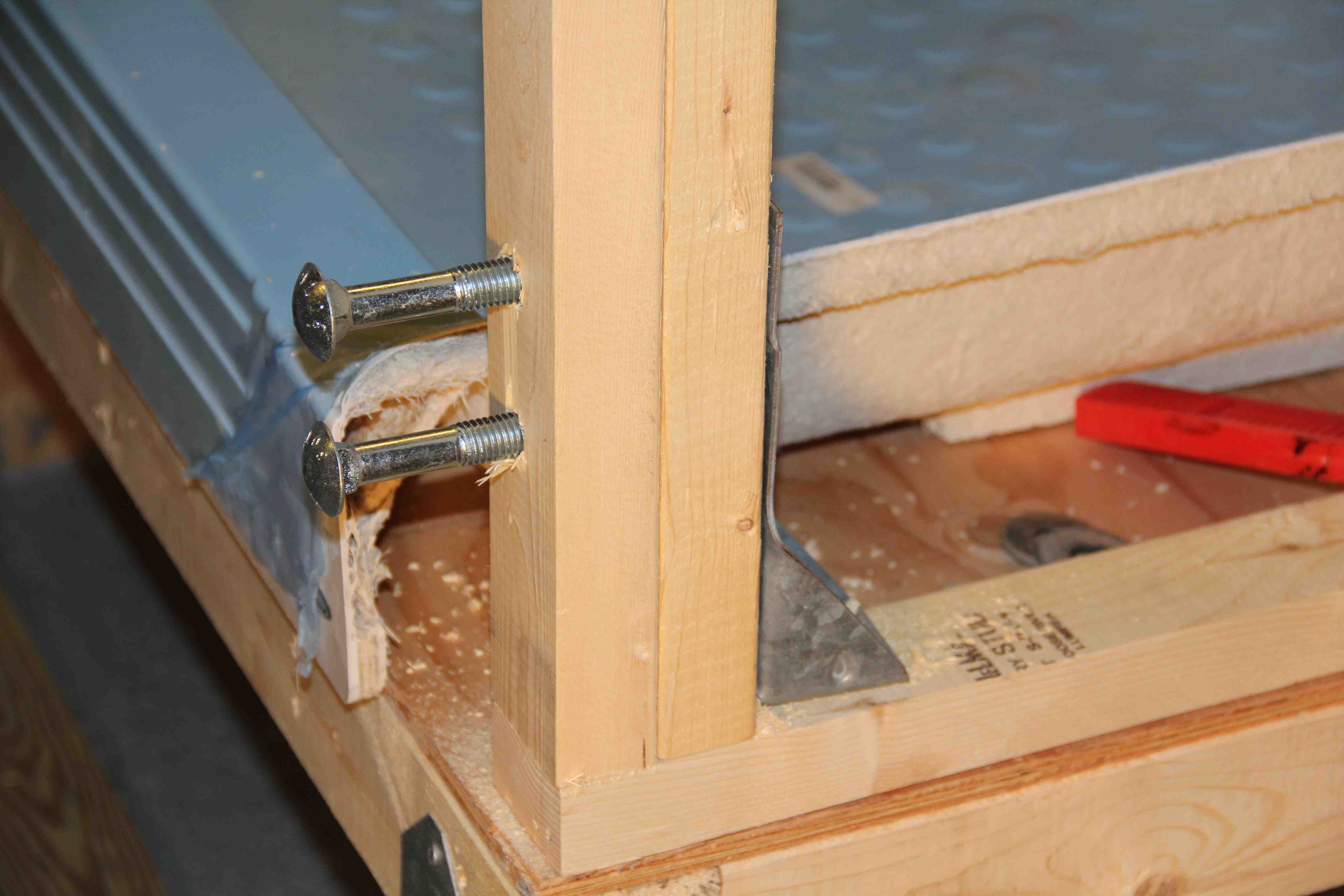

Pony Wall Installation
Here are the general steps to construct a pony wall:
- Measure and mark the location of the wall: Use a tape measure and pencil to mark the position of the wall on the floor or foundation. Make sure the measurements are accurate, and the wall is straight. A half-wall design can cover the entire room or just a section. You could also construct a wall next to an existing one or surround it with two walls with a space in between.
- Prepare the area: Remove any obstacles or debris from where you will build the wall. Clean the floor or foundation, and make sure it is level.
- Build the frame: Use 2×4 lumber to build the wall frame. Cut the lumber to the desired length and nail or screw the pieces together to form a rectangular frame. Use a level to ensure that the frame is straight and level.
- Install the wall studs: Add vertical studs to the wall after building the frame. Place the studs beneath the floor joists when extending a half wall from a foundation wall. Space the studs evenly, typically every 16 inches in the centre. Use a level to ensure that each stud is straight and plumb.
- Add blocking: Install horizontal blocking between the studs to strengthen and stabilise the wall. It is crucial to place the blocking at the top and bottom of the wall and at any intermediate points.
- Install the sheathing: Nail or screw plywood sheathing to the outside of the wall. This will provide additional strength and stability to the wall. Mark the entire floor so you can keep things level. Hang it up and secure it to the ground with screws. Pony walls that span the entire length of a room should have both ends screwed into the main walls.
- Finish the wall: Apply drywall or other finishing material to the inside of the wall. You can also add baseboard and trim to the bottom of the wall to finish the look.
Once you have completed these steps, your pony wall will be ready. Make sure to follow local building codes and regulations when constructing the wall.

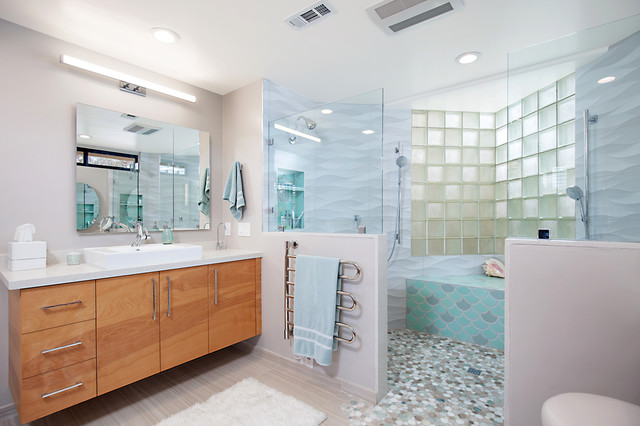

Advantages of Pony Wall
From a construction point of view, pony walls can have several benefits, such as:
- Cost-effective: A pony wall can be less expensive to construct than a full-height wall as it requires less material and labour.
- Easier to install: A pony wall is typically easier to install than a full-height wall, as it is shorter and requires fewer materials and tools.
- Customisable: A pony wall can be customised to fit the specific needs of a project (such as a partial barrier or dividing a room) and desired style and finishes.
- Improved accessibility: A pony wall can provide improved accessibility to different areas of a room or building, allowing for a better flow of people and materials.
- Structural support: Depending on the design and location of the pony wall, it can provide additional structural support for a building or a load-bearing wall.
- Reduced load on the foundation: Because a pony wall is shorter and weighs less than a full-height wall, it can reduce the load on the foundation, potentially reducing the cost and complexity of the foundation design.
While there are many advantages to using a pony wall in construction, there are also some potential disadvantages. Here are some of the disadvantages of a pony wall from a building construction point of view:

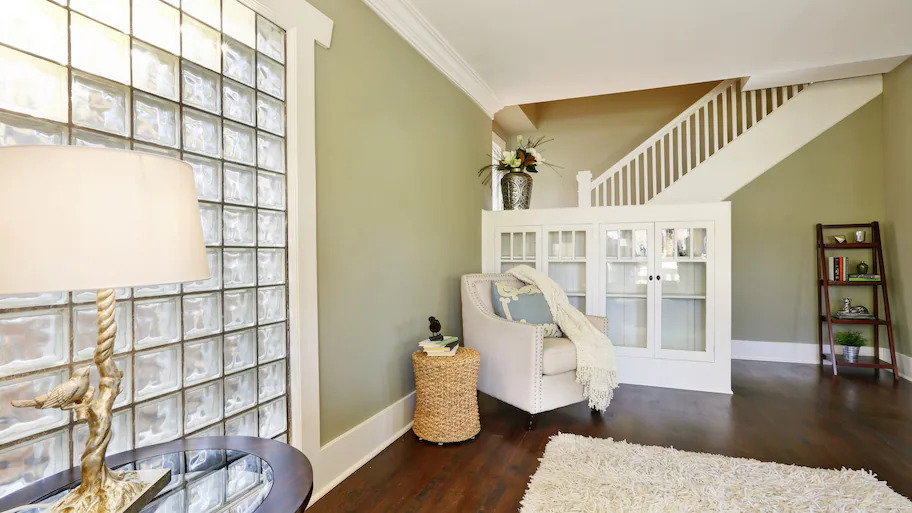

Disadvantages of Pony Wall
- Limited structural support: The building may demand more structural support depending on the height and location of the pony wall. A full-height wall may be required in some cases.
- Limited privacy: A pony wall may not provide more privacy, as it is shorter than a full-height wall and may not block sound or sight completely.
- Limited flexibility: A pony wall is less flexible than a temporary divider or a curtain, as it is a permanent fixture. This means you cannot move or remove the pony wall easily.
- Design limitations: Because a pony wall is shorter than a full-height wall, it may limit the design options, such as the placement of windows, doors, or electrical outlets.
- Limited storage: While a pony wall can provide some storage space, it typically has less storage than a full-height wall with built-in shelving or cabinets.
- Additional finishing work: A pony wall may require additional finishing work, such as adding baseboards or trim, to create a finished look that matches the rest of the room or building.
Conclusion
Pony walls can be a practical and cost-effective solution for various construction projects, providing both functional and aesthetic benefits. A pony wall can offer increased privacy, safety, storage, structural support, and flexibility depending on its design and purpose. From a construction point of view, a pony wall can be less expensive and easier to install than a full-height wall, while also being customisable to fit the project’s specific needs. However, it is important to consider the potential disadvantages of a pony wall, such as limited structural support, privacy, flexibility, and design options. Ultimately, the type of pony wall used in a construction project will depend on its intended purpose, design, and local building codes and regulations.
