Weatherproofing your home begins at the top and works its way down. Roof maintenance while reinforcing the outside is essential. Effective roof ventilation creates a strong barrier that prevents moisture and draughts from infiltrating your home’s core regions. Your home is more likely to suffer from condensation, high humidity, and mould growth if sufficient ventilation is not provided. Let’s take a closer look at roof vents that come as a workable solution to tackle various such issues that crop up due to insufficient ventilation.
What is a Roof Vent?
A system that permits sufficient airflow in the attic is known as a roof vent. It plays a crucial role in the roofing system. Its main objective is to stop moisture buildup in the winter and summer and to overheat the roof. Improper roof vent installation can put our health at risk and also cause structural damage.
Ice dams, mould, and high electricity bills are all consequences of poor roof vent placement. People’s health is placed in danger, and their property may be damaged as a result of the issues that develop.
From the perspective of creating suitable living and working conditions, a good and effective ventilation system should meet the following functional requirements:
How Does Roof Ventilation Work?
Proper attic roof ventilation is required to avoid condensation in your attic due to overheating. The best roof ventilation methods are as follows:
01. Mechanical Exhaust Ventilation
To make airflow, you need a source of power. The stack effect happens when hot air rises and puts more pressure on the roof, which increases the pressure in the attic. The hot air that goes out of the car is called “exhaust.” No matter what, the hot air can’t leave unless cooler, lower-pressure air can come in.
02. Natural Exhaust Ventilation
Due to temperature differences in the roof, air moves around on its own, so most home ventilation doesn’t need to be mechanical or electrical. It is only true if the vents are the right size and in the right place, and if they are not blocked by things like cobwebs and dust that have built up over time. We do recommend cleaning the roof vents every once in a while.
Additionally, you can refer to the following page to learn more about roof ventilation methods –

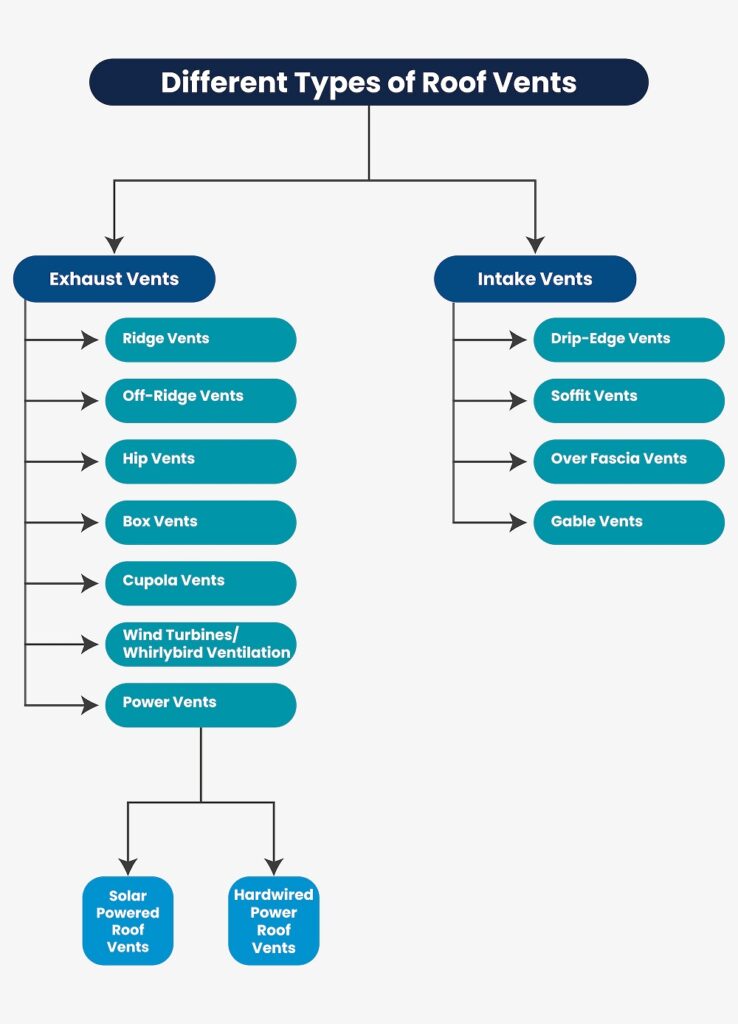

Different Types of Roof Vents
There are two types of roof vents: exhaust vents and intake vents, and there’s only one rule to remember when it comes to how they work: exhaust vents let stale air out, while intake vents let in the fresh air.
01. Exhaust Vents

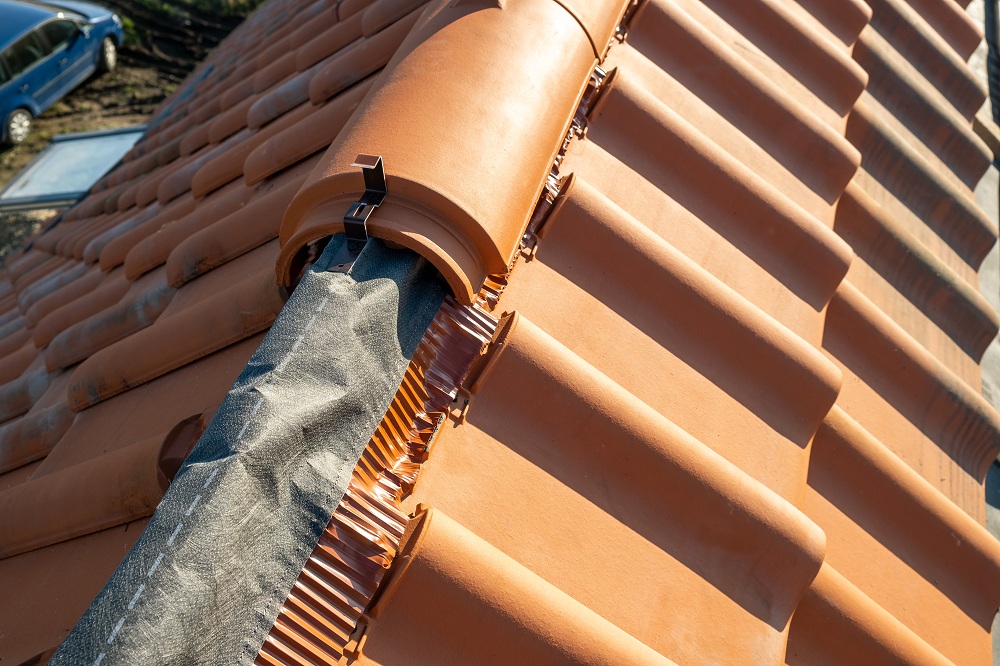

a. Ridge Vents
A ridge vent is an air exhaust vent installed on the roof’s peak. A small air slot is first cut into the roof deck at the roof’s highest point before this vent can be mounted to the roof. The ridge vent itself serves to conceal this air slot. These vents keep rain, snow, insects, and debris out of the attic. The roof was finished with ridge cap shingles to protect the vents and provide a clean appearance.
If you want to keep the attic well-ventilated, you’ll need a way to get air into and out of it. Eave and soffit vents, or openings in the exterior wall where a roof or overhang protrudes, allow cool and dry air to enter the lower attic. Convection aids in moving heated attic air to the roof’s highest point, where it is expelled via the ridge vent. This “passive system” type is an efficient way to ventilate an attic because it does not require any energy to function properly.

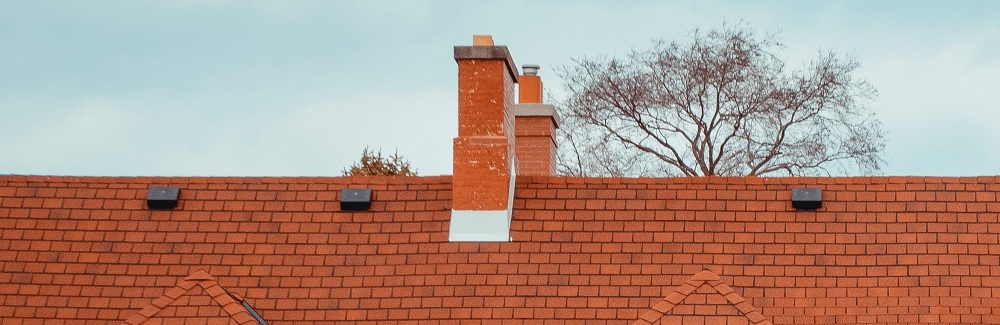

b. Off-Ridge Vents
On roof ventilation, off-ridge vents aren’t a very popular choice. Unlike full-ridge vents, which are much larger and sit higher on the roof, off-ridge vents are much smaller and sit lower. Because of their size and location, they can’t expel a lot of hot air, and they can’t vent the hottest air like ridge vents.
Four feet is the length of the most popular off-ridge vents on the market. When using galvanized steel, cutting a hole the size of the vent into the roof approximately one foot below the ridge line is required for installation.
Off-ridge vents can be advantageous when the roof’s ridge line is relatively short. It is also used on complex roofs and homes that don’t have a continuous ridge line for a traditional ridge vent can fit into this. It is possible to add an off-ridge vent or two to these roofs to improve ventilation in areas where it is currently lacking.

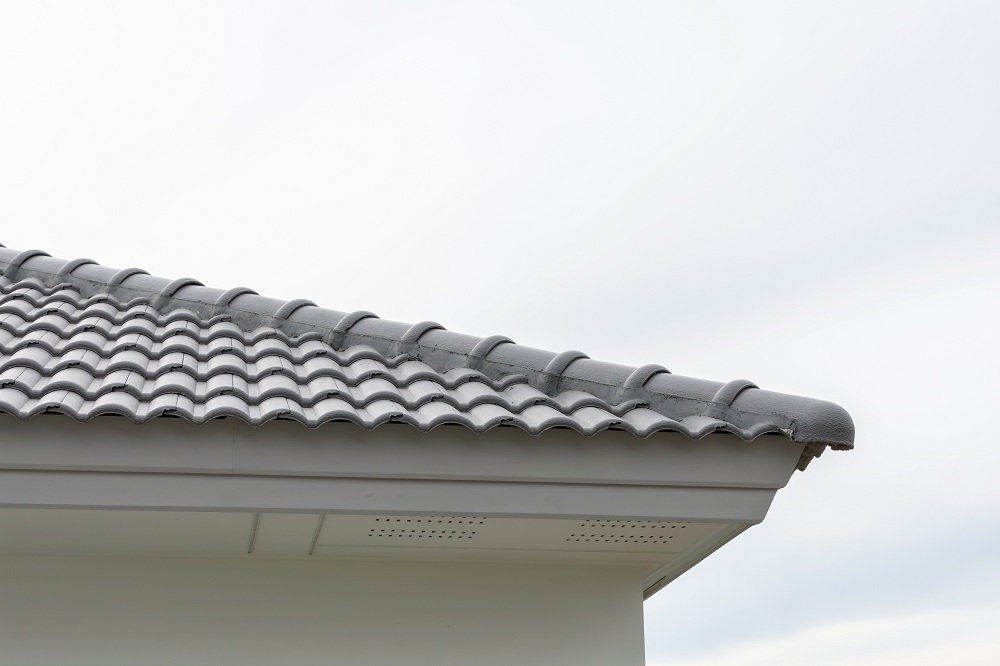

c. Hip Vents
A hip vent is designed for a roof with a hip slope. The shape of this type of roof resembles a pyramid. They don’t have ridges on which ridge vents can be used because the roofs are steeply sloped.
No need to worry about slatting ten box vents into your roof because the vent is discrete and low-profile. Soffit ventilation should be used with hip vents to maximize their effectiveness.

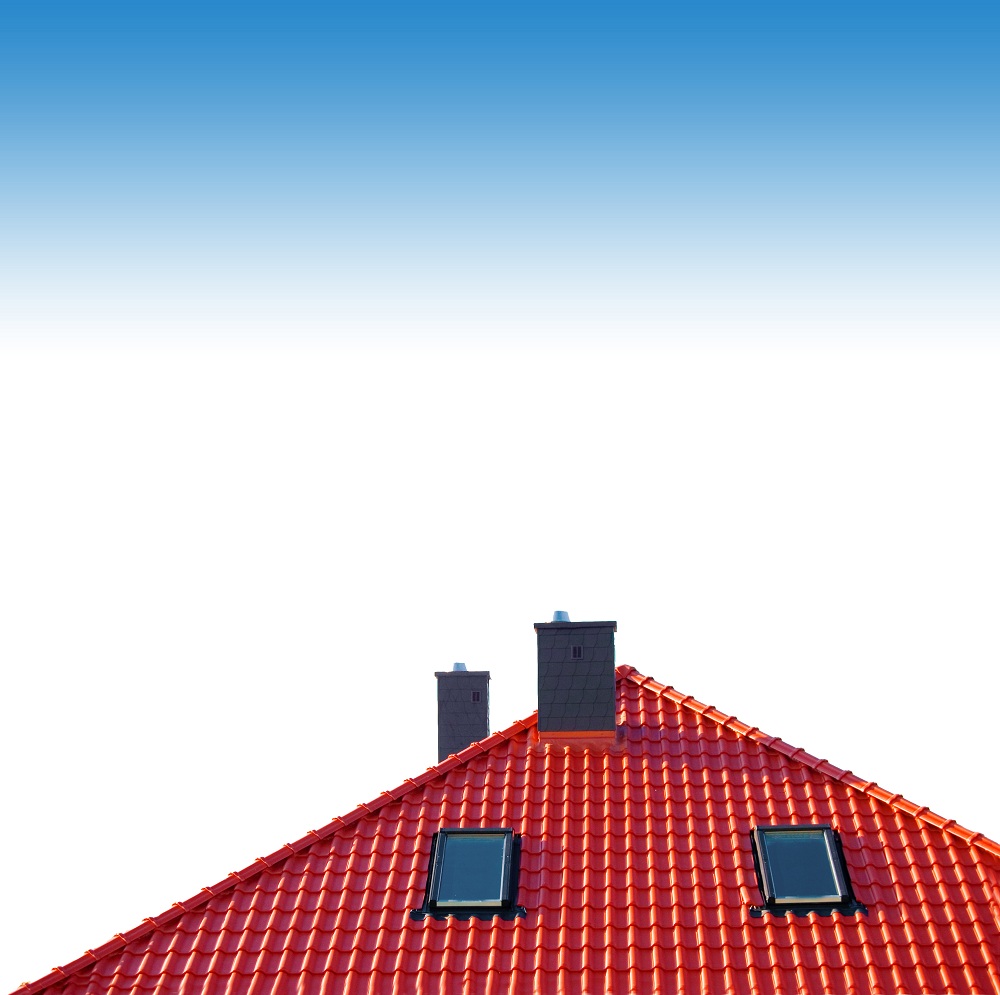

d. Box Vents
Compared to off-ridge vents, box vents are a more popular choice for attic ventilation. It is called a ‘box vent’ because of its square design. There are a variety of sizes to choose from to fit your space’s requirements. There are a lot of 18-inch-by-18-inch box vents on the market these days.
Cutting a hole in the roof to sit the vent over is one of the first steps in installing a box vent. Install a slew of box vents across the roof to provide additional ventilation. Having just one or two box vents on your roof isn’t enough!
Box vents are one of the two most common exhaust vents found on modern roofs, the other being ridge vents. Their small size is a disadvantage, but they can be quite versatile compared to a ridge vent. Box vents can be strategically installed in smaller areas that need air venting, but they cannot utilize a ridge vent because they do not need to run across the entire peak of the roof.
It makes sense to use the box vent on a roof with many different sections, just like off-ridge vents. If you have a large roof, a ridge vent is usually much more effective than an exhaust vent.
e. Power Vents
Electricity is needed to run these roof vents. It is common to call them electric attic vents. These powered vents are installed on the roof or the gable. Many options are available if you’re looking for a colour that goes well with the rest of your decor. In addition, most of the roof power vents are discreet. Their size and round shape make them an ideal candidate for placement near your roof. Solar-powered and hardwired models are the two main types of powered vents.

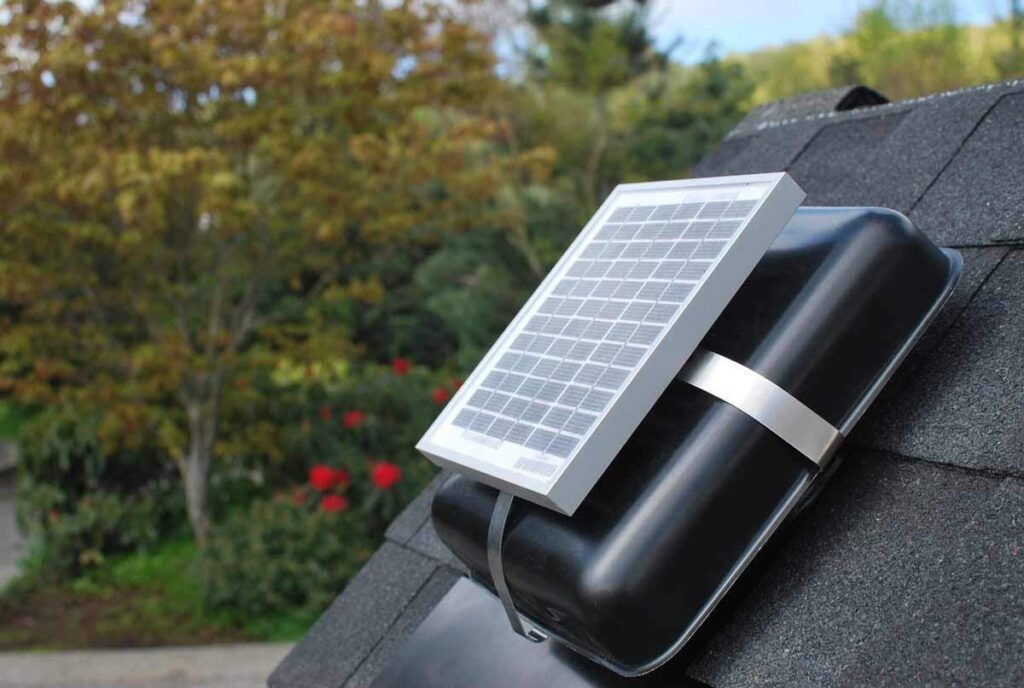

1. Solar-Powered Roof Vents
Solar-powered vents are a type of power-driven vents. Instead of using electricity, they are powered by the sun. Vents turn off when the solar-powered battery is getting charged. The solar panel will have to be constantly recharged to power the vent. However, removing the need for electricity does not affect how the machine functions.
Powered vents can have negative consequences that otherwise wouldn’t have existed when utilized in conjunction with an appropriate vertical ventilation strategy (such as a ridge vent exhaust and a soffit vent intake). Consequently, it is advisable to use more traditional and natural exhaust systems for your roof. If your attic has enough ventilation, you don’t even need an electric attic fan.

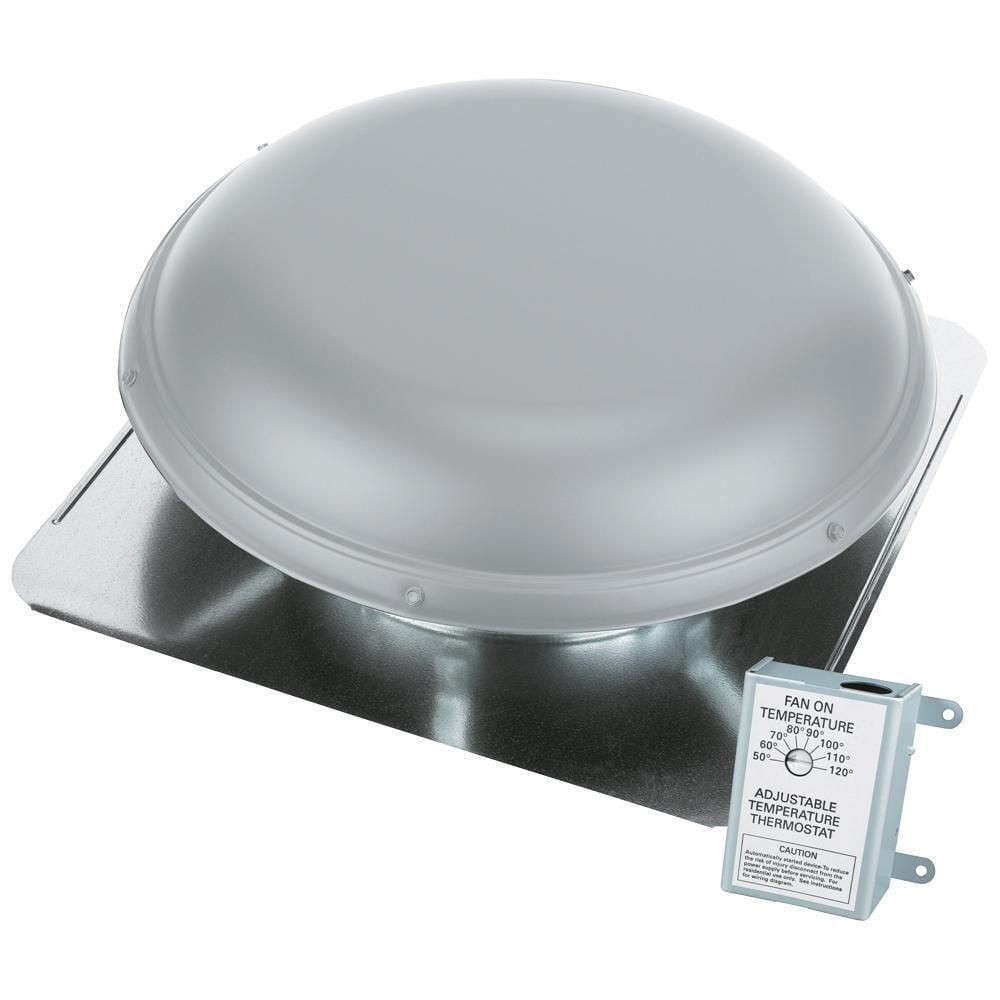

2. Hardwired Power Roof Vents
Hardwired power roof vents are the most common type of power roof vent. Roof vents wired into your home and connected to a thermostat or humidistat are the most common type of roof vent. However, a manual switch may be used instead. A hardwired roof vent can be installed on a gable or a hole in your roof. If you’re using a hardwired vent, it’s a good idea to use an intake vent, such as a soffit vent.

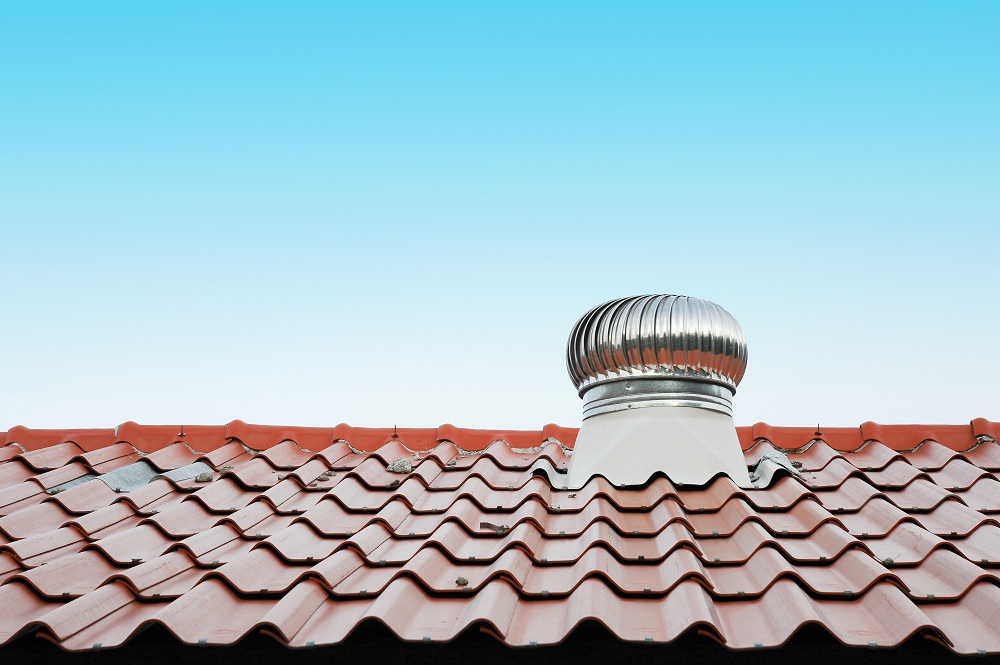

f. Wind Turbines/Whirlybird Ventilation
Samuel Ewart, a British inventor, created the first wind turbine, also known as a Whirlybird vent, in the early twentieth century. A rotor of aluminium blades with an aluminium “cowl” or “covering” protects the blades from damage. To this day, modern Whirlybird models adhere to Ewart’s original design.
As far as roof vents are concerned, this is one of their most well-known varieties. The wind turbine may look familiar if you’ve lived in an older house or even if it was in your childhood home. Your house may have one now.
The roof vent of a wind turbine does not consume any power. As the name implies, it operates solely on the movement of air. The presence of wind aids its ability to move air. The vanes of the wind turbine remove hot, humid air as it spins. Stale air from your attic or roof space is removed during this process, which can also help cool the area naturally.

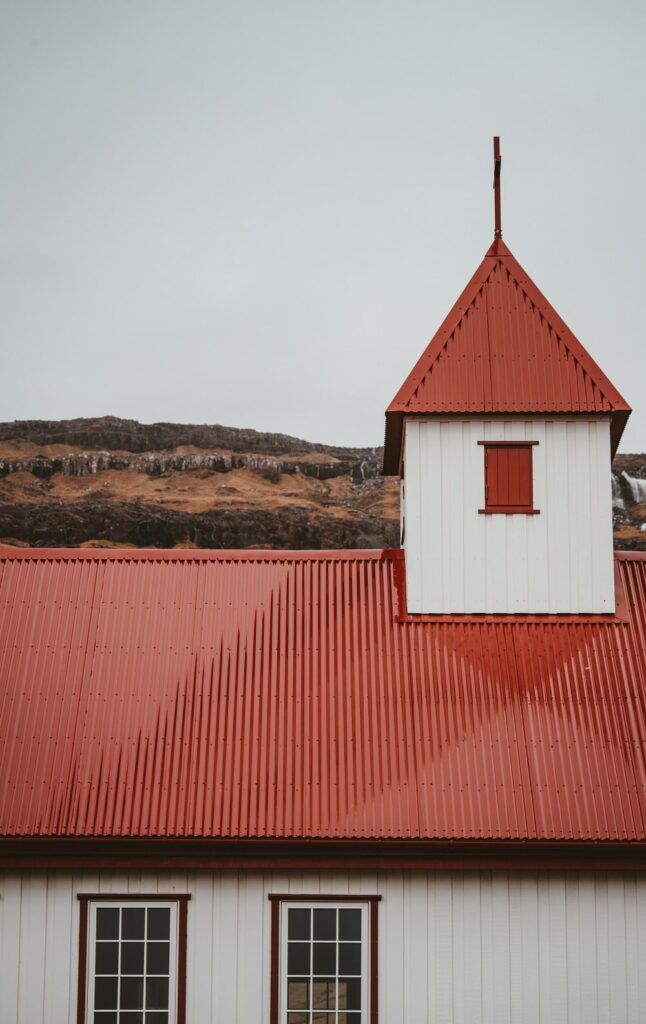

g. Cupola Vents
The cupola vent is also great for adding some flair to your roof. These exhaust ducts are massive, but they’re also quite lovely. It is more common in sheds, barns, and other outbuildings than in most homes. However, it is still a good vent in use today.
One of the cupola vent’s original functions was to provide ventilation and light into an attic or roof area. These roof vents are installed directly on the ridge of a roof and constantly move air through them. It’s possible that a cupola vent, which costs more but provides more ventilation, may be the right choice for you.
02. Intake Vents

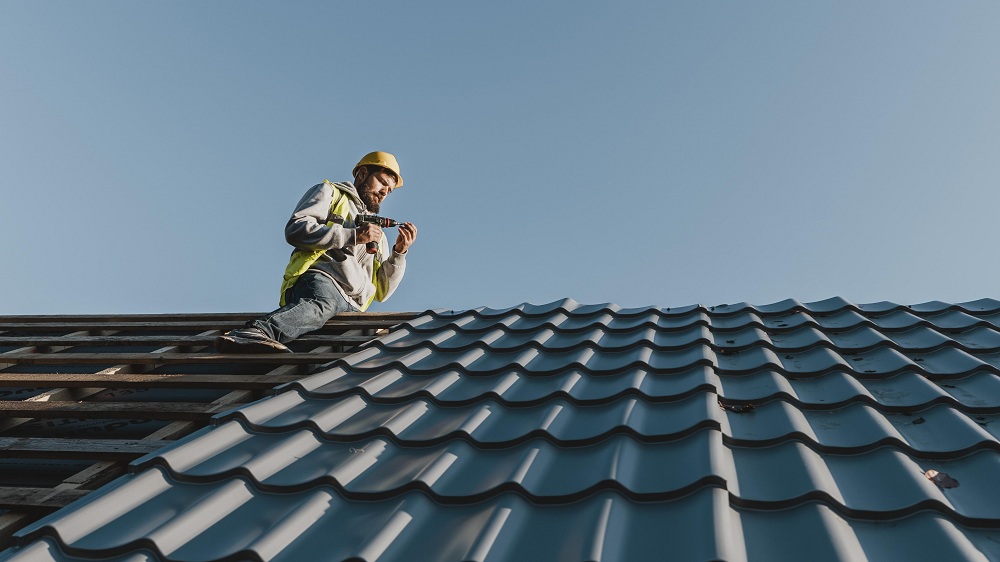

a. Drip-Edge Vents
Like the soffit vent, the drip-edge vent is designed to function similarly. Under the eaves, some homes don’t have enough space for soffit ventilation. Here, drip-edge vents come into play. Roof vents provide intake ventilation, which attaches to your roof’s drip edge. The vent is netted to let air flow through.
When installing drip-edge vents, the required work depends on the setup you already have in place. Small spaces with a drip edge and no extra space are ideal for these, however. These vents do a great job of removing heat.

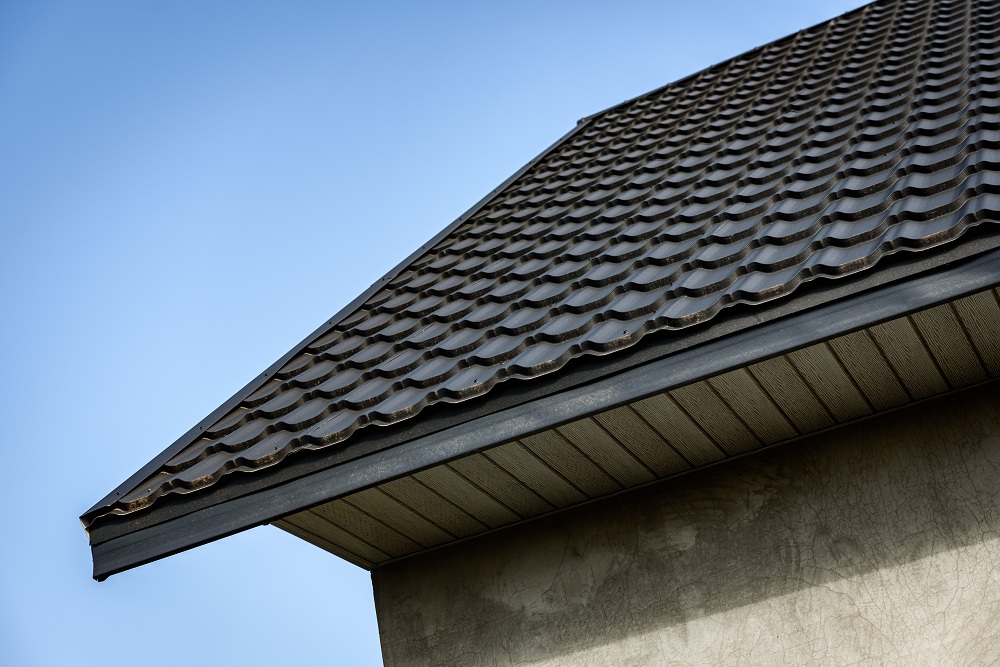

b. Soffit Vents
Soffit ventilation is the most common method of roof intake ventilation, which is also a popular choice among home builders and roofers. Most new-home builders include soffit vents in their plans if the house style allows for them. The intake vents, known as soffits, are installed directly on the eaves, the horizontal surfaces immediately below the roof line. This area is also known as the “roof overhang” by some people.
Soffits come in various shapes and sizes, but the most popular ones have tiny holes that let cool air into your attic space, which helps push hot air out of your house through the exhaust vent. Furthermore, the soffit’s holes are so tiny that unwanted animals cannot get inside your home. So, do not worry.
Two different soffit vent types, continuous and individual, were created to fit most home styles because no two houses are alike. Continuous soffit vents are available longer and more frequently, encircling a home’s entire eaves. Like a ridge vent extending the length of a roof’s peak, continuous soffits offer much surface area for the money.
More air can pass through an object if its surface area is larger. Vinyl is typically used for continuous soffits, and intake holes are usually drilled into it. Due to their vinyl construction, they are available in a wide range of textures and colors, allowing them to complement almost any home’s style and aesthetic.

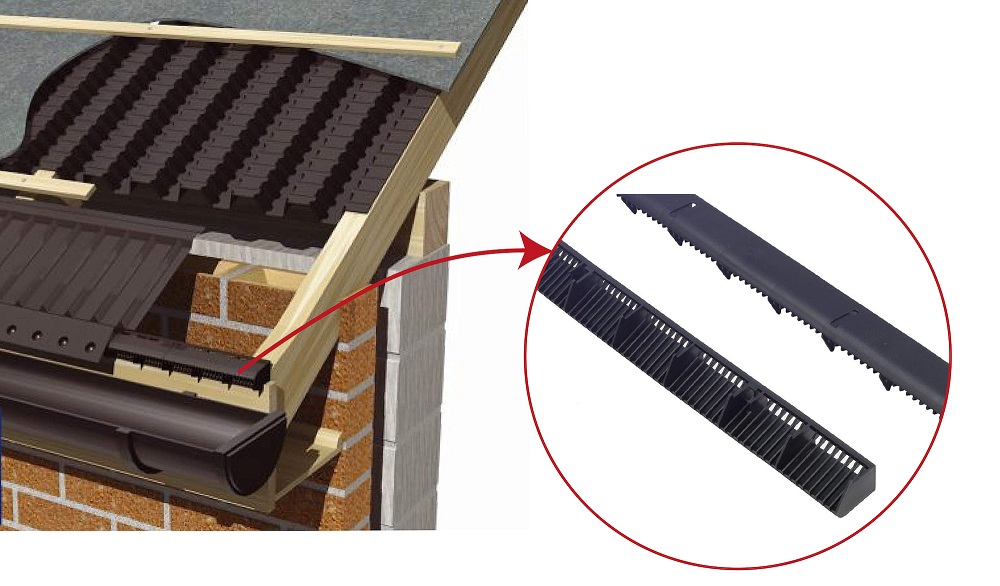

c. Over Fascia Vents
If your roof is a hip roof, a fascia vent is a suitable alternative. The hip roof has a pyramidal shape as a result. Neither drip-edge nor soffit venting can be attached to it because it lacks eaves. This situation necessitates the use of fascia vents. The best way to ventilate a roof like this is with a combination of these vents and hip vents.
The concept is similar to drip-edge or soffit vent systems, apart from the setup. We strongly recommend using the hip and fascia vents for hip-style roofs. Keeping the heat out of a house’s attic or roof space with this type of roof can save a lot of money on cooling costs.

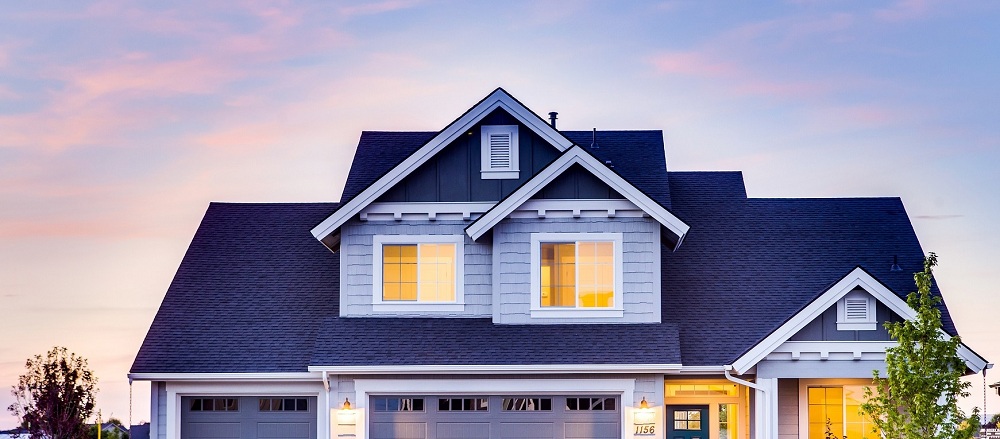

d. Gable Vents
A gable vent is an intake vent that also serves as an exhaust system. It is an older, somewhat dated design. In contrast to the vertical ventilation we’ve discussed, gable vents use horizontal or cross-ventilation to keep the attic air moving. The basic premise is that air enters the attic from one side and exits from the other.
Nonetheless, the most typical gable vent design is triangular and it stands right beneath the pinnacle of the roof. Metal is the most common material, though wood and vinyl are also used. Most commonly, a gable vent is used on homes with gable-style roofs because the vents can be placed on either side of the house as needed. Complex roof designs make these vents less effective because rafters and other roof components obstruct the cross-breeze.
Benefits of Roof Ventilation
- It is necessary to have roof ventilation in colder climates to keep rooms warm. A surprising benefit of ventilation is that it helps keep the roof cool in hotter climates. Consequently, they help regulate the temperature in your house.
- Moisture accumulated in the roof causes major problems in your living space below due to a saggy roof leak. Roof ventilation prevents mildew and molds from forming and causing further damage by allowing moisture to escape.
- A well-designed roof ventilation system is essential if you want to keep the heat out of your home. The less work your air conditioner has to do, the less money you’ll spend running it.
- If your roof is excessively moist, the moist air will be absorbed by the insulation, rendering it ineffective. Roof ventilation will help control the ambient temperature levels inside your home, making it more comfortable.
Disadvantages of Roof Ventilation
- Some roof ventilation systems don’t keep water out during storms. They’re only built to keep out regular rain; therefore, there is a probability that wind may carry water to your roof in a hurricane. If your roof ventilation isn’t right, you risk roof leaks.
Fans can suck conditioned air into attics with improperly sealed attics, making your air conditioner work harder and less effectively. Even with a low ceiling, electric roof ventilators are energy inefficient.
Conclusion
Roof vents are much more important than they seem to be. The air they circulate helps to keep the house cool in the summer and warm and humid in the winter by allowing excess fumes to escape and circulating the warm, dry air. They are an important part of ensuring enough airflow in the home. They let excess fumes out and keep the area cooler, especially during hot summers. In the winter, they move warmer, more humid air around.
There are different types of roof vents, so you must choose which one to buy. It’s worth noting that some combinations of roof vents work better than others. At the very least, you should consider costs, efficiency, durability, and performance. It’s always a good idea to have a roof vent, as long as you know which ones are right for your property.
