Nowadays, building construction is growing to an extraordinary level, as more and more people are getting inclination towards luxury, aesthetics and design of their dream home. Luxury & aesthetics of the house depends upon many factors and ‘Electrical lighting system’ plays a major role in it. The electrical lighting system comprises various electrical & electronic devices such as lighting, telephone, heating and ventilation systems and various other electrical gadgets.
During the early years of the last century, all cabling used to be provided on the surface of walls and below slabs. However, in the contemporary scenario, all the cabling is hidden underneath the plaster and this technique called ‘council wiring’. To council the wiring, electrical conduits are installed before the finishing of the wall and after the masonry work is done.

This article’s information is restricted to various types of conduit and materials used to make those conduits.

What is an Electrical Conduit?

Electrical Conduit

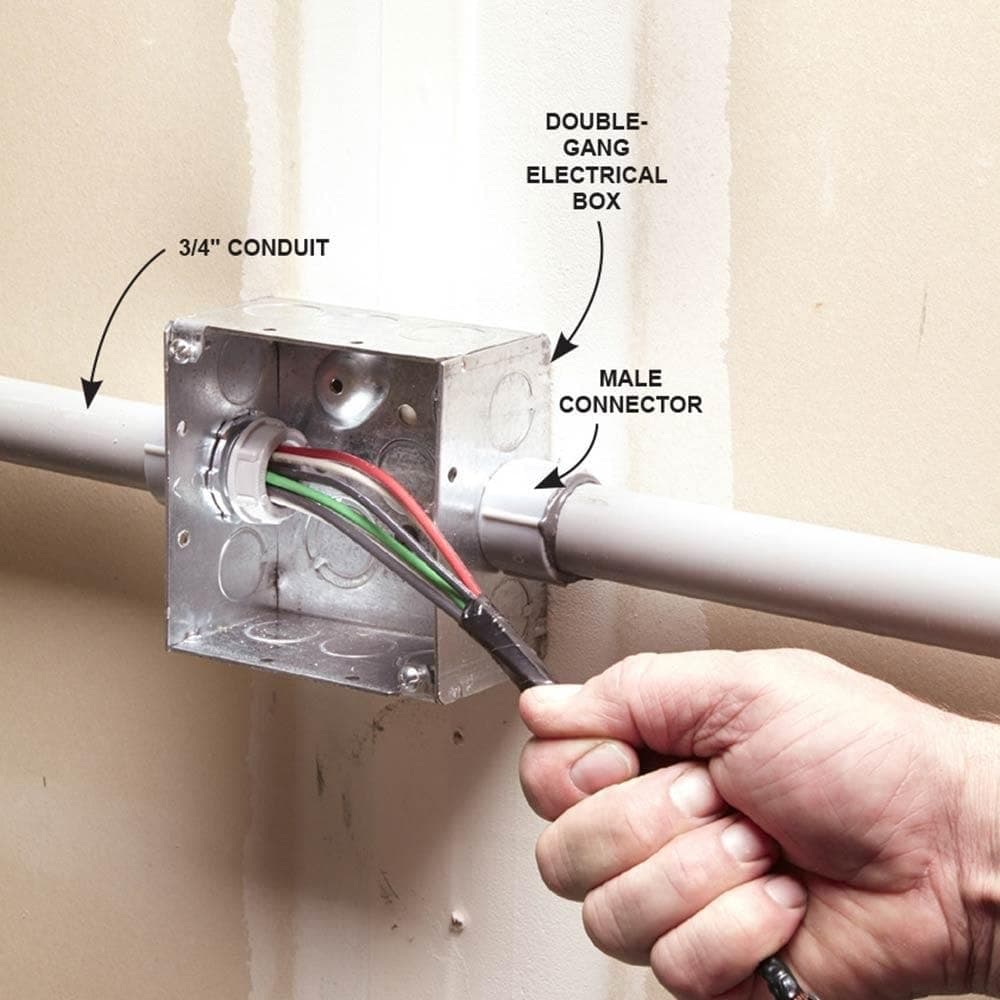

An electrical conduit is a tube used to protect and provide a path for electrical wiring in a building or structure.Conduit is generally provided for concealed and opened wiring or where it might be subject to damage. An electrical conduit is usually made up of metal, plastic or fiber. Conduits are classified on the basis of the thickness of the wall. Choices of the conduit will depend on their application, use, type of building etc. All conduits must be installed according to the National Electrical Code (NEC).

Types of Conduit

There are two main different types of conduits commonly used in residential and light commercial wiring system.
01. Metallic Conduit
02. Non-Metallic Conduit

Difference Between Metallic and Nonmetallic surface conduit

01. Metallic Conduit

Metallic conduit is a very simple conduit. They are made from metal material. There are different types of metallic conduit that include:

  • Rigid Metal Conduit (RMC)
  • Intermediate metal conduit (IMC)
  • Flexible Metal Conduit (FMC)
  • Electrical Metal tubing (EMC)

(a) Rigid Metal Conduit (RMC)

Rigid metal conduit (RMC) is a thick- heavy walled threaded tubing which frequently made of coated steel, galvanized steel, or aluminum. Rigid metal conduit is usually provided reliable protection from outdoors damage, and it can also provide structural support for electrical cables, panels, and other equipment.

Rigid Metal Conduit

(b) Intermediate Metal Conduit (IMC)

Intermediate metal conduit or IMC is a thinner and light-weight version of rigid metal conduit (RMC). IMC is a rigid steel electrical conduit which is designed for outdoor exposure and strong connection. It is designed to protect insulated electrical conductors and cables. IMC is approved for use in all applications as compared to a rigid metal conduit (RMC). Nowadays IMC used more commonly in new construction because Intermediate metal conduit (IMC) is lighter and easier than RMC.

(c) Flexible Metal Conduit and Liquid-Tight Council Wiring(FMC and LFMC)

Flexible Metal Conduit
  • Flexible Metal Conduit (FMC):

Flexible metal conduit (FMC) is commonly referred to as “Greenfield”. It has a spiral construction that makes it easy to snake through the walls and other structures. The flexible metal conduit bends and twists easily without the use of any additional Electrical hardware or elbow joints, threading etc. FMC is very easy to install. Flexible metal conduit (FMC) is useful in those places where the rigid conduit is very difficult to install. Standard FMC is used in dry indoor locations. Flexible metal conduit is a good choice for vibrating equipment such as heating and air conditioning units.

  • Liquid-Tight Flexible Metal Conduit (LFMC)

Liquid-tight flexible metal conduit (LFMC) is a special type of flexible metal conduit (FMC).  LFMC is a flexible metallic conduit which is covered by the waterproof plastic coating. LFMC is extra flexible which is generally used in outdoor equipment, such as air conditioner units. It provides mechanical and moisture protection for conductors. The interior of LFMC is similar to the FMC.

(d) Electrical Metallic Tubing (EMT)

Electrical metallic tubing or EMT is another example of a rigid electrical conduit, which is usually made of galvanized steel or aluminum. Electrical metallic tubing (EMT) is also known as a “thin wall” because it is thin and light in weight, as compared to a rigid metal conduit (RMC). EMT is also very easy to install. The common sizes of EMT include 1/2-inch (12.7 mm), 3/4-inch (19.05mm), and 1-inch (25.4mm).

Electrical Metallic Tubing

02. Non-Metallic Conduit

Non-metallic conduit(NMC)is also common both in rigid and flexible type. Non metallic conduit is usually made from PVC conduit.For metal conduits as well as non-metal conduits same types of fittings are mostly used.Moisture resistance, resistance to corrosive substances, and ease of installation are the benefits of non-metallic conduit.

Non-Metallic Conduit

(a) Rigid PVC Conduit

Rigid PVC Conduit

Non-metallic conduit (NMC) is also common both in rigid and flexible type. Non-metallic conduit is usually made from PVC conduit. For metal conduits as well as non-metallic conduits same kinds of fittings are mostly used. Moisture resistance, resistance to corrosive substances, and ease of installation are the benefits of non-metallic conduit.

Advantages of Concealed Electrical Conduit Wiring System

The use of concealed Conduit leads to many benefits. The primary purpose of the electric conduit is safety. Following are the advantages of conduits.

  • Electrical conduit is a safe wiring system
  • One of the most significant benefits of electrical conduit installation is to protect the enclosed conductors from impact, moisture and chemical vapours
  • There is no risk of shock in a home with concealed electrical wiring system.
  • Aesthetic view of concealed electrical wiring is always attractive
  • There is no risk of wear and tear
  • Renovation of concealed electrical wiring is an easy task

Disadvantages of Concealed Electrical Conduit Wiring System

  • The electrical concealed Conduit wiring system is expensive as compared to surface Conduit wiring
  • Installation of concealed wiring is not easy
  • Once electrical conduits are developed, then it is challenging to identify defects and repair of those wiring.
  • If once the location of switches is fixtures then it is difficult to change the position of switches.

Now a day it is very important to have an electrical conduit in your home. Electrical conduit is very useful in protecting wires when it passes through the ground. The electrical concealed conduit wiring system is very safe. There are various advantages of electrical conduit wiring system as compared to a few disadvantages. So, it is always beneficial to have this system in the house.
