Plan Analysis of 4 BHK Bungalow (690 sq.mt.)

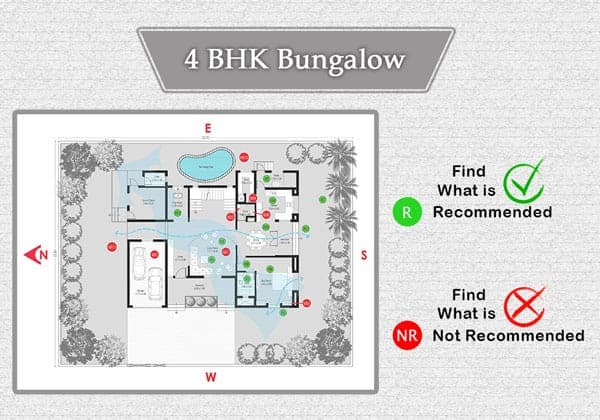

Here we have analysed and reviewed the design of 4 BHK bungalow admeasuring 690 sq.mt. Good features have been shown as “Recommended” and undesirable features have been shown as “Not Recommended”.
The road on which the house abuts and North have also been shown in the sketch.

Plan Analysis of 4 BHK Bungalows 690 sq.mt
Ground Floor

R1       Wet area and dry area concept of toilet are well defined in this toilets!
R2       Well defined space designed for placement of washing machine and wash area.
R3       Living and dining room both have different entry with separate verandah and are internally well connected!
R4       Kitchen, store room and wash areas are well connected to each other!
R5       Living room layout is well planned with ample number of seating’s.
R6       Bedroom is planned in wind direction which is good!
R7       Maximum trees are planted on south direction such that it can block the direct glare of sun entering in to the room.
R8      Good indirect entry to the bedroom.
R9       Windows in opposite walls are good for cross ventilation.
R10    Dining is well connected with kitchen & living room.
R11    Dining area can get direct entry to the outside & gets connected to nature.
R12    Location of Pooja room is well located as per vastu.
R13    Creating double height increases the space importance & makes it look more spacious!
R14    Open terrace is well located with the swing & greenery, make you fell connect to nature on upper floor.

Plan Analysis of 4-BHK Bungalows 690 sq.mt
First Floor

NR1    Very less space to accommodate two car parking!
NR2    No ventilation is provided in this toilet.
NR3    Not able to open the shutter of wardrobe very critical if this is the situation you can opt for sliding door for your wardrobe.
NR4    Very critical space, how person can enter to the store room? The store rack should be leaned back so that one can easily enter the room!
NR5    According to Vastu and also the science says, it is not recommended to sleep towards North direction. Therefore the bed layout needs to be changed!
NR6    Wet area and dry area is not well defined in toilet it needs to replan!
NR7    Inadequate distance provided from television to seating, it should be more as per overall bungalow space designed & its utilization!
NR8    No cross ventilation in this room.
NR9    Not enough space for family seating.
NR10  Swimming pool location is not well designed, as there is only entry from the kitchen. Here there is enough big spaces around, the swimming pool should be planned on other side such that it can also get some semi open spaces  with sittings & decks.
NR11  This area should be use with some interesting landscape ideas, like adding gazebo, semi-open spaces, waterbody, etc.
