How to Check the Quality of Plywood on Field & Laboratory?

Why Should You Test Plywood?

Nowadays Building construction has expanded in a big way. It has large numbers of raw materials, i.e. cement, sand, aggregate, brick, wood, steel etc. Every material plays their particular role in the strength and the durability of the building and quality of all materials are of prime importance.
In all the materials wood is perhaps the ancient construction material. Perhaps it would not be an exaggeration that the building construction started from the wood itself. In today’s time, it has emerged as important and in an artistic way. The wooden product is regularly used as an important raw material for building construction as well as for furnishing homes and offices, woodworks for boats and ships, partition and external walls, wood flooring system, wall cladding etc.

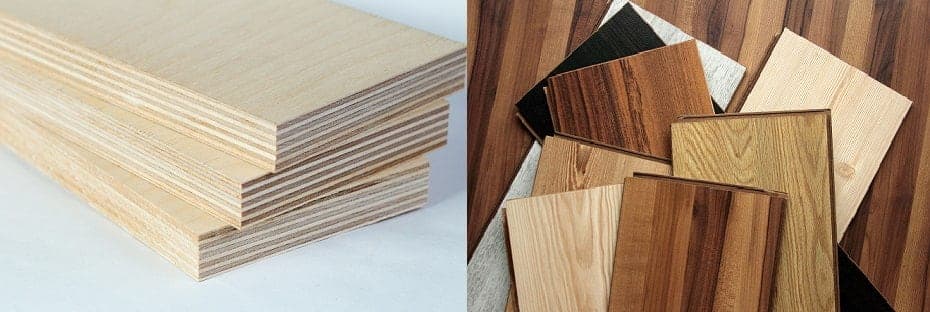

Plywood Image

In the wooden product plywood is the most common and reliable material. In the market, it is available as sheets of wood, called plywood sheets. Various types of plywood and plywood grades are easily available in the market. It is used in furniture, wall partition, doors, stairs, roofs, kitchen cabinets, etc. and also gives the strength assurance for its use either inside or outside, or in a different exposure like dry, humid or moist environment. Hence, testing of plywood is required before using plywood for the greater life, durability and serviceability of construction.

Properties of Plywood

The basic plywood properties are expected stability, high strength, flexibility, fire resistance, etc. If you want to know more about these plywood properties check the previous article named properties of plywood as a building material. It’s essential to check the plywood properties for the achieving desire strength and performance. There is various plywood testing available for the checking of the properties of plywood. There is two kind of tests performed on the plywood known as a field testing of plywood and laboratory testing of plywood. Field test gives a general idea about plywood quality at a first observation on site or in-store and on laboratory test gives a scientific approach to assure of quality.

Uses of Plywood Image
Also Read:
Things to Keep in Mind while Buying Plywood
What is the Size & Cost of Plywood?

(a) Field Testing of Plywood

You can check the plywood quality on the site, by performing some basic tests, which are called as a field test, i.e.

  • Thickness of Plywood Sheets:

A thickness of plywood sheets remains same all throughout the sheet. For finding any variation present in thickness, measure the four edges of the ply.

  • Undulation of Plywood Sheets

The undulation of plywood sheets, gives an ugly finishing to the surface, after polishing, laminating or painting the product. The uneven surface also indicates lower strength and improper production techniques. For finding these, move your hand slowly over the flat surface of the plywood and feel any undulation or unevenness on the surface.

(b) Laboratory Testing of Plywood

Generally, you notice some sign like ISI-303 or ISI-710 on plywood sheet when you purchase it. Those numbers are Indian standard guidelines number, which is given after the testing of plywood and assure the quality. ISI-303 is for general purpose (commercial and BWR-boiling water resistant) plywood and ISI-710 is for marine plywood. These are the different plywood grades. If you want to know more about plywood grades, check the previous article, Different Grades of Plywood.

ISI Marking on Plywood Image

This sign confirms that your plywood sheet has been tested according to that specific standard and it is according to the standard quality. Laboratory testing of plywood with their relevant guidelines are as mentioned below.

  • Determination of density and moisture content – IS 1734 (Part- 1) 1983
  • Determination of resistance to dry heat – IS 1734 (Part- 2) 1983
  • Determination of fire resistance- IS 1734 (Part- 3) 1983
  • Determination of glue shear strength – IS 1734 (Part- 4) 1983
  • Test for adhesion of plies – IS 1734 (Part- 5) 1983
  • Determination of water resistance – IS 1734 (Part- 6) 1983
  • Mycological test – IS 1734 (Part- 7) 1983
  • Determination of pH value – IS 1734 (Part- 8) 1983
  • Determination of tensile strength – IS 1734 (Part- 9) 1983
  • Determination of compressive strength – IS 1734 (Part- 10) 1983
  • Determination of static bending strength – IS 1734 (Part- 11) 1983
  • Determination of scarf joint strength – IS 1734 (Part- 12) 1983
  • Determination of panel shear strength – IS 1734 (Part- 13) 1983
  • Determination of plate shear strength – IS 1734 (Part- 14) 1983
  • Central loading of plate test – IS 1734 (Part- 15) 1983
  • Vibration of plywood plate test IS 1734 (Part- 16) 1983
  • Long time loading test of plywood strips – IS 1734 (Part- 17) 1983
  • Impact resistance test – IS 1734 (Part- 18) 1983
  • Determination of nails and screw holding power – IS 1734 (Part- 19) 1983
  • Acidity and alkalinity resistance test – IS 1734 (Part- 20) 1983

Plywood Tests

Some important plywood tests are mentioned below in brief:

01. Determination of Density and Moisture Content:

Density directly affects the strength, as an increase in the density increases the strength too. Moisture content also determines the plywood quality. The plywood strength gets adversely affected and it becomes weak when the plywood is very dry (having low moisture content). On the other side, when the plywood is too moist, its likely to decay and rot in the future. As per recommendation, the density of plywood should be around 800 Kg/m3 and moisture content should be not less than 5 percent and not more than 15 percent.

02. Determination of Resistance to Dry Heat:

This test is conducted when the plywood sheet has been stored in the dry heat condition. From this test, you can evaluate the resistance of plywood to delamination in storage under dry heat conditions.

03. Determination of Glue Shear Strength:

This test is performed to check the plywood quality in the tenacity due to which the bonding material holds the veneers together.

04. Determination of Water Resistance:

The water-resistant test of plywood is required, where the plywood is subjected to alternate drying and wetting condition or high humidity condition.

05. Mycological Test:

The mycological test is conducted to evaluate the resistance power of the glue line (adhesive) from attack by micro-organisms. It is not a test of the durability of the species from which the plywood is manufactured.

06. Determination of Nails and Screw Holding Power:

This test is most essential for plywood. It’s intended to assess the nail and screw holding capacity of the plywood. This is most important as the life of serviceability of mostly furniture or element will depend on that.
Testing of plywood ensures the plywood quality and helps you in a selection of proper material for your use. So that your products have desired strength and long durability and give you self-satisfaction that, you are using the right material and your money invested is an investment and not wastage and you are getting value for the money.

Also Read:
Particle Board vs Plywood: Make the Right Choice
Advantages and Disadvantages of Plywood
Solid (Natural) Wood vs Plywood vs Blockboard vs HDF vs MDF vs Particle Board: Make the Right Choice of Engineered Wood

Image Courtesy: Image 3(a), Image 3(b)
